OPO – Optical Parametric Oscillator

Levante Emerald ps

Tunable NIR OPO (ps) for Green Pump Laser


Tunable Automated ps NIR OPO Suitable For an External Green ps Laser as Pump


Overview

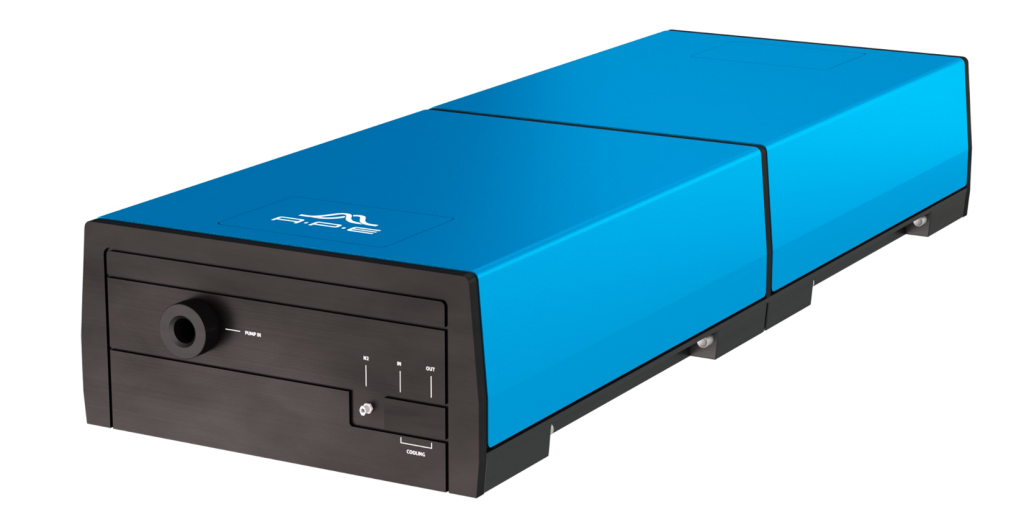

Levante Emerald is a widely tunable fully automated high power NIR OPO of ps pulses. It is based on a synchronously pumped optical parametric oscillator (OPO), with an external green ps laser as pump. The OPO is adaptable to work with pump pulse widths between 2 … > 20 ps and pump powers from 2 … 20 W for an output power of up to 5 W. The pulses of the output beams are close to transform limit and of high beam quality. The Levante Emerald exhibits a robust mechanical design on a solid steel baseplate enabling stable long term operation as well as excellent beam pointing stability.

New Automated Version

The Levante Emerald has been newly developed featuring full automation, i.e. software controlled tuning. This is made possible by its entirely new control electronics, internal diagnostics, and Control Software packaged conveniently in a new housing. Hence handling has never been easier. The Control Software on the PC is equipped with a Software Interface (using TCP/IP). The OPO can easily be integrated into larger experimental setups and software controlled environments. The new Levante Emerald is based on APEs long standing experience in developing and manufacturing fully automated OPOs.

At a Glance

  • Fully automated tuning
  • 2 ps or 6 ps (other on request)
  • Control Software: Simply enter the desired wavelength
  • Internal diagnostics for power and wavelength
  • Two tunable output beams with different colors (Signal and Idler)
  • Signal and Idler beam overlapped in space and time | Beam separator included
  • 2 ps pulse width for CARS, Coherent Raman imaging
  • Remote access available for customer support and error diagnosis

Recommended Pump Laser


Multi-color Experiments & Multi-photon Microscopy

Because of the synchronous pumping, the Signal and Idler pulses of the Levante Emerald are generated jitter-free with respect to each other as well as the pump pulse. Signal and Idler are available at the same time1). Since they are coupled out of the OPO collinearly, the Signal and Idler pulses have an intrinsically perfect spatial and temporal overlap in the output beam of the system. The photon energy difference between Signal and Idler is continuously tunable, which makes the Levante Emerald an ideal system for multi-color excitation experiments, such as e.g. SRS (Stimulated Raman Scattering), or CARS (Coherent Anti-stokes Raman Scattering). Even more combinations of jitter-free pulses with different wavelengths are available when using a pump laser which also offers (preferably undepleted) green pulses at the fundamental wavelength.

Shorter 2 ps Version

The Levante Emerald with 2 ps (pumped by the Emerald Engine with 2 ps pulses) offers an optimized pulse width with maximum spectral bandwidth in the Raman fingerprint region without compromise in resolution for highest signal levels. Its high efficiency in non-linear processes makes the Levante Emerald with 2 ps an ideal tool for applications such as CARS (Coherent Antistokes Raman Scattering) and SRS (Stimulated Raman Scattering) imaging applications. Compared to the 6 ps version of the Levante Emerald, the Levante Emerald with 2 ps has shown improvement in CARS signals by a factor of 10, and in SRS signals by a factor of 2.5. Also signals of SHG or Multi Photon Fluorescence are much improved. The Levante Emerald has been successfully used for SHG imaging. Important wavelengths for MPE (Multiphoton Excitation Microscopy) are directly available, such as e.g. 950 nm for GFP (green fluorescence protein) or 1160 nm for RFP (red fluorescence protein).

OPO Revolution

Short documentary that travels the world to examine how APE optical parametric oscillator (OPO) systems are enabling next generation work in solar cells, cancer research, biomedicine, surgical procedures, molecular science, and more.


Power Scaling

An OPO is especially suited for power scaling because it uses a parametric process for operation – compared to a laser process with intrinsic heating due to the quantum defect – where there is no intrinsic heat generated by the parametric process in an OPO.

Tuning - Sweep Mode

The actual OPO Signal wavelength and bandwidth is measured by an internal real-time high resolution spectrometer, and the power by calibrated photodiodes. To tune, the user simply enters the desired wavelength into the Control Software of the OPO. For fast tuning over a certain wavelength range a sweep function has been added. It allows tuning from a set start wavelength to a set end wavelength automatically in short time, either with a predefined hold at each spectral step, or with advance for each step on a software trigger.

Acquisition Software and TCP/IP Standard Software Interface

All models come with an easy to use data acquisition software, allowing for real-time data display. Furthermore, the TCP/IP-based standard software interface by APE makes it straight forward to set up remote control. This allows you, for example, to design your own automated measurement routines. Simply use our protocol templates for rapid configuration with familiar programming languages, including C++, C#, LabVIEW, Python, Matlab, and Ruby.

APE ist ein weltweit führender Hersteller von Laser- und Laserdiagnostik-Instrumenten, insbesondere für die Ultrakurzpuls-Diagnostik (u.a. Autokorrelatoren) und die Wellenlängen-Konversion (u.a. Abstimmbare Laser, OPO, OPA). Unsere Kunden arbeiten in verschiedenen Anwendungsgebieten von der Spektroskopie bis zur Mikroskopie, von der Quantenphysik bis zur Lasermaterialbearbeitung. Wir sind ein 1992 gegründetes mittelständisches Familienunternehmen mit Sitz in Berlin.

Zur Verstärkung unseres Teams suchen wir zum nächst-möglichen Zeitpunkt eine/-n ambitionierte/-n

Fachkraft (m/w/d) Logistik und Zoll

Ihre Aufgaben

  • Termingerechte Abwicklung versandfähiger Aufträge mit Hilfe unseres ERP-Systems
  • Überprüfung und Vervollständigung aller notwendigen Versandangaben in den Aufträgen im ERP-System
  • Unterstützung anderer Abteilungen bei Versand- und Zollthemen
  • Erstellung von Versandpapieren auch nach Kundenvorgaben
  • Erstellung der gesamten Versand- und Zolldokumentation
  • Erstellung von Präferenzpapieren
  • Einholung von Exportgenehmigungen
  • Überwachung, Aufrechterhaltung von bestehenden zollrechtlichen Bewilligungen
  • Einholen von Frachtangeboten und Beauftragung der Speditionen oder Versanddienstleister
  • Überwachung der Einhaltung der vereinbarten Laufzeiten
  • Beschaffung und Archivierung von Ausgangsvermerken, Ausfuhrnachweisen und Gelangensbescheinigungen
  • Importabwicklung von Retouren auch unter besonderen Zollverfahren sowie Überwachung der Wiederausfuhr und Beendigung der Zollverfahren
  • Selbstständige Überprüfung aktueller Zollbestimmungen und Versandrichtlinien

Was Sie mitbringen sollten

  • Abgeschlossene Berufsausbildung Kaufmann/-frau für Groß- und Außenhandel oder Speditions- und Logistikdienstleistung oder gleichwertige Kenntnisse
  • Berufserfahrung im Bereich Versand und Zoll (Zollabwicklung)
  • gute Kenntnisse der ATLAS Zollsoftware
  • Organisationstalent
  • Selbstständige, gewissenhafte und strukturierte Arbeitsweise
  • Freude an der Arbeit im und mit anderen Teams
  • Sehr gute Deutsch- und gute Englischkenntnisse
  • Erfahrung im Umgang mit ERP-Systemen und MS Office

Wir bieten

  • eine Herausforderung mit Eigenverantwortung in einem hochtechnologischen Umfeld mit familiärer Arbeitsatmosphäre
  • eine vielseitige Tätigkeit in abteilungsübergreifender Teamarbeit
  • ein motiviertes, kollegiales Team mit flachen Hierarchien und kurzen Entscheidungswegen
  • betriebliche Altersvorsorge
  • Deutschlandticket-Job

Wenn Sie Freude daran haben, innerhalb eines expandierenden mittelständischen Unternehmens in der Metropole Berlin in einem freundlichen und kollegialen Umfeld zu arbeiten, freuen wir uns auf Ihre Bewerbung.

Ihre vollständigen Bewerbungsunterlagen schicken Sie per Email an:

Cornelia Gläser
cornelia_glaeser@ape-berlin.de
APE Angewandte Physik und Elektronik GmbH
Plauener Str. 163 - 165, Haus N
13053 Berlin
Tel.: 030-98601130

APE ist ein weltweit führender Hersteller von Laser- und Laserdiagnostik-Instrumenten, insbesondere für die Ultrakurzpuls-Diagnostik (u.a. Autokorrelatoren) und die Wellenlängen-Konversion (u.a. Abstimmbare Laser, OPO, OPA). Unsere Kunden arbeiten in verschiedenen Anwendungsgebieten von der Spektroskopie bis zur Mikroskopie, von der Quantenphysik bis zur Lasermaterialbearbeitung. Wir sind ein 1992 gegründetes mittelständisches Familienunternehmen mit Sitz in Berlin.

Zur Verstärkung unseres Lager- und Montageteams suchen wir zum nächstmöglichen Zeitpunkt eine/-n ambitionierte/-n

PRODUKTIONSMITARBEITER / FEINOPTIKER / PHYSIKLABORANT / (m/w/d)

Ihre Aufgaben

  • Reinigen und Kleben optischer Elemente
  • Zusammenstellen optischer Elemente für nachfolgende Produktionsschritte
  • Pflege der Optiklagerhaltung
  • Selbständiges Montieren von Baugruppen und Geräten in Kleinserien gemäß Vorgaben und Zeichnungen
  • Universelle Mechaniker-Tätigkeiten

Was Sie mitbringen sollten

  • Gutes technisches Verständnis
  • Erfahrungen im Umgang mit optischen Elementen wünschenswert
  • Abgeschlossene Berufsausbildung als Feinoptiker, Feinmechaniker, Industriemechaniker oder Ausbildung mit vergleichbarem Inhalt von Vorteil
  • Kenntnisse im Umgang mit ERP-Systemen wünschenswert
  • Zuverlässige, selbstständige und strukturierte Arbeitsweise
  • Sprachkenntnisse: Deutsch fließend, Englisch von Vorteil

Wir bieten

  • Interessante, vielfältige Aufgaben und ein eigenständiges Aufgabengebiet in einem familiären, mittelständischen Hightech-Unternehmen in Berlin
  • Großer Gestaltungsspielraum und Möglichkeit eigene Ideen umzusetzen
  • Kurze Entscheidungswege und flache Hierarchien
  • Zukunftsorientiertes, dynamisches Umfeld mit attraktiven Arbeitsbedingungen

Wenn Sie Freude daran haben, innerhalb eines expandierenden mittelständischen Unternehmens in der Metropole Berlin in einem freundlichen und kollegialen Umfeld zu arbeiten, freuen wir uns auf Ihre Bewerbung.

Ihre vollständigen Bewerbungsunterlagen schicken Sie bitte per Email an:

Susanne Baxmann
susanne_baxmann@ape-berlin.de
APE Angewandte Physik und Elektronik GmbH
Plauener Str. 163 - 165, Haus N
13053 Berlin
Tel.: 030-98601130


More Wavelengths with Levante in Combination with Harmonic Generation or Spectral adaptation with Spectrum Slicer

Combine Levante OPO with one of our Harmonic Generators to cover different wavelength ranges or with our Spectral Slicer to use narrower spectra for your application.


Specifications

Levante Emeraldpumped by Emerald Engine (APE)pumped by PXz50-2-GF (EdgeWave)
Wavelength range Signal660 nm … 960 nm700 nm … 990 nm
Wavelength range Idler1120 nm … 2300 nm1150 nm … 2200 nm
Power Signal at 800 nm>0.7 W pumped with 3 W,
others on request
>1.75 W pumped with 10 W,
others on request
Power Idler at 1250 nm>0.4 W pumped with 3 W,
others on request
>1.0 W pumped with 10 W,
others on request
Δν Signal - Idler1440 cm-1 … 9000 cm-11400 cm-1 … 9700 cm-1
Δν Signal - Laser Fundamental720 cm-1… 4500 cm-1, if fundamental beam ~1030 nm is available710 cm-1… 4850 cm-1, if fundamental beam ~1064 nm is available
Pulse width Signal~2 ps, others on request~7 ps, others on request
Spectral bandwidth Signal~10 cm-1, others on request~3 cm-1, others on request
Time bandwidth product, typical0.6
Repetition rate~80 MHz, equal and synchronous to pump laser
PolarizationLinear, horizontal
Beam quality M2<1.2 (typical 1.1)
Wavelength tuningFully automated
Wavelength tuning feedbackBuilt-in spectrometer, 495 nm … 1630 nm
SoftwareNotebook with pre-installed software included
Remote controlvia TCP/IP

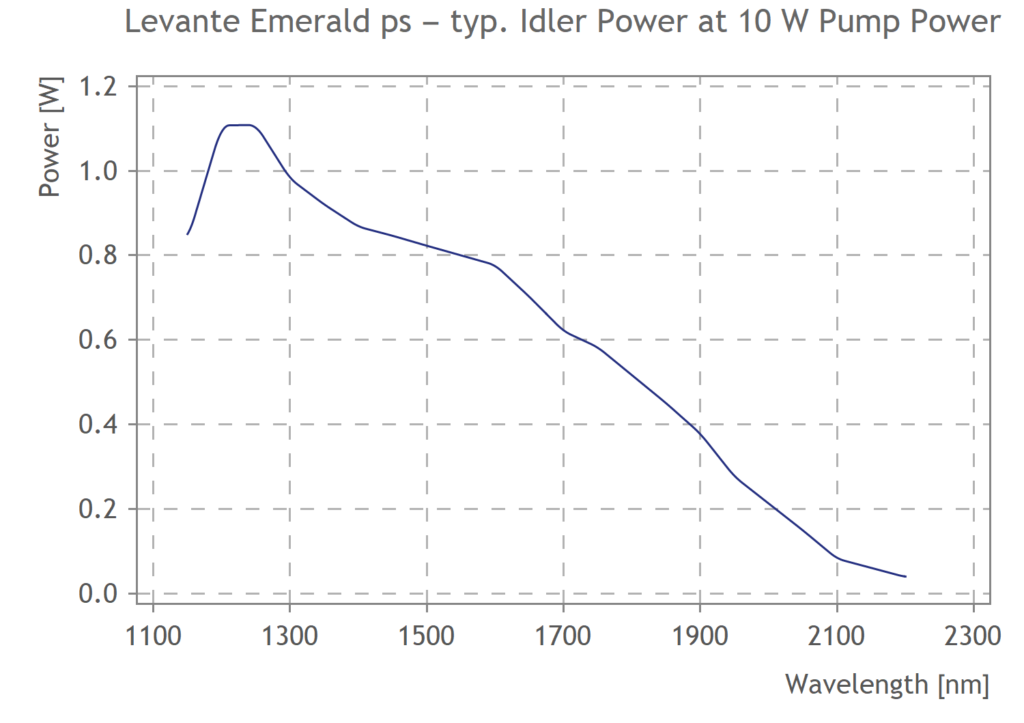

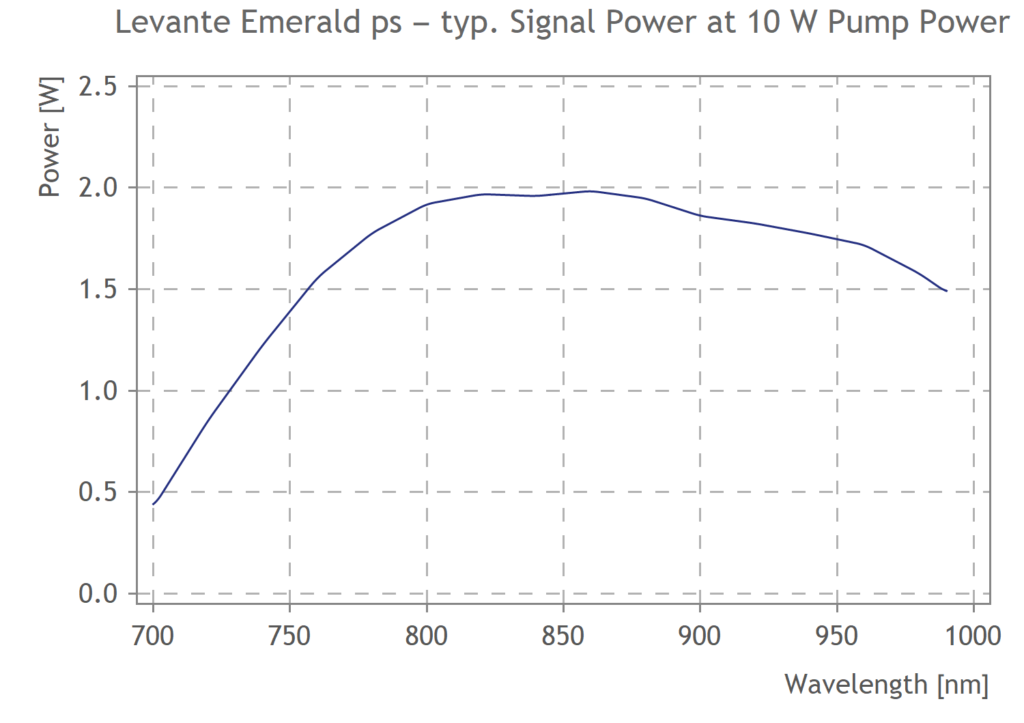

Typical Data
