Customized Systems Unlimited Possibilities for Your Research Projects

Custom Software Code Lines Written
Possibilities to Combine Components
R&D People at APE Berlin
Single Components to Combine

Two-Photon Resonance, Quantum Dots, Qubits, Semiconductor

Quantum-Dots: On-demand Generation of Entangled Photons Pairs

One of the very first requirements to generate ideal on-demand single photon emission from quantum dots (QD) is two-photon resonant excitation. The setup is used to create stable pico-second pulsed laser emission (picoEmerald) in a tunable range of about 700 – 1950 nm.

The wavelength range is further enhanced into the infrared region (DFG). To achieve best excitation parameters without interference of the QD excitation, a double pulseSlicer (for IR and for NIR) is incorporated for narrowing the broadband laser pulses by spectral cutting. The complete system is automated and allows wavelength setting via APE software.

Installation Site: The Quantum Nano Photonics (QNP) group is part of the Department of Applied Physics at the School of Engineering Sciences located in Stockholm, Sweden.

Inspired by: Klaus Joens, KTH Stockholm, Sweden

Quantum Dots System Generation of Entangled Photon Pairs APE

Characterization of a Noble-Gas Filled Hollow Core Fiber Laser by Spider Customized Systems

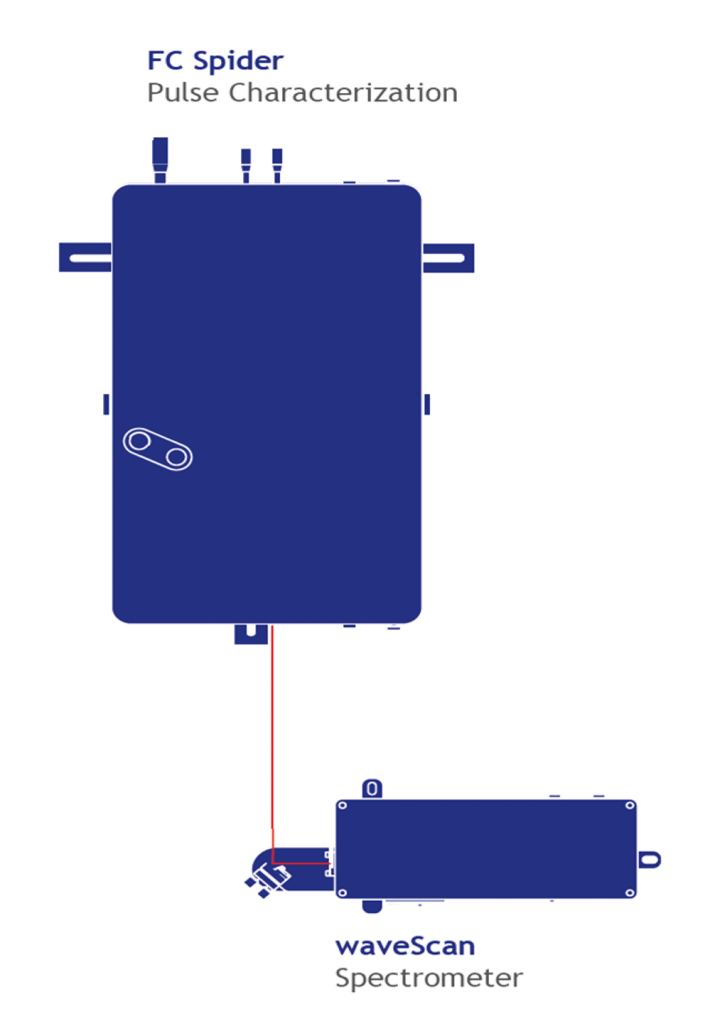

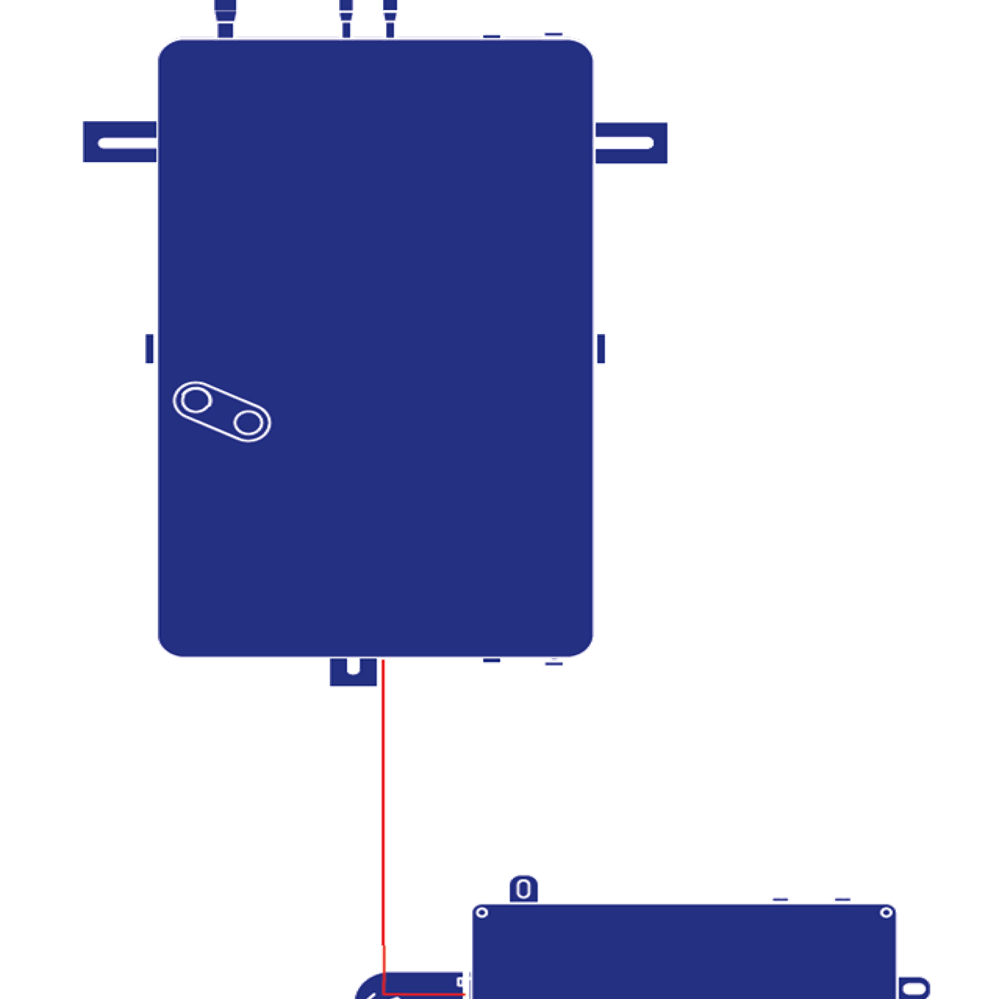

Characterization of a Noble-Gas Filled Hollow-core Fiber Amplifier

SPIDER, Hollow-core Fiber Amplifier, Few-cycle

Pulse compression in a hollow-core fiber is an approach for the generation of very short fs-pulse durations. It is implemented in various ways, for instance, by spectral broadening in noble gas filled hollow-core fibers where the noble gas acts as a nonlinear medium. In this setup, SPIDER traces of such a system with extremely short pulses (few-cycles) and high pulse energies has been recorded. To cover the broad spectrum, an extended IR wavelength version (700 – 1300 nm) of a Few Cycle SPIDER has been realized by coupling an additional waveScan spectrometer.

Inspired by: Active Fiver Systems GmbH, Jena, Germany

Microtomography, SRS, Coherent Raman, Stimulated Raman

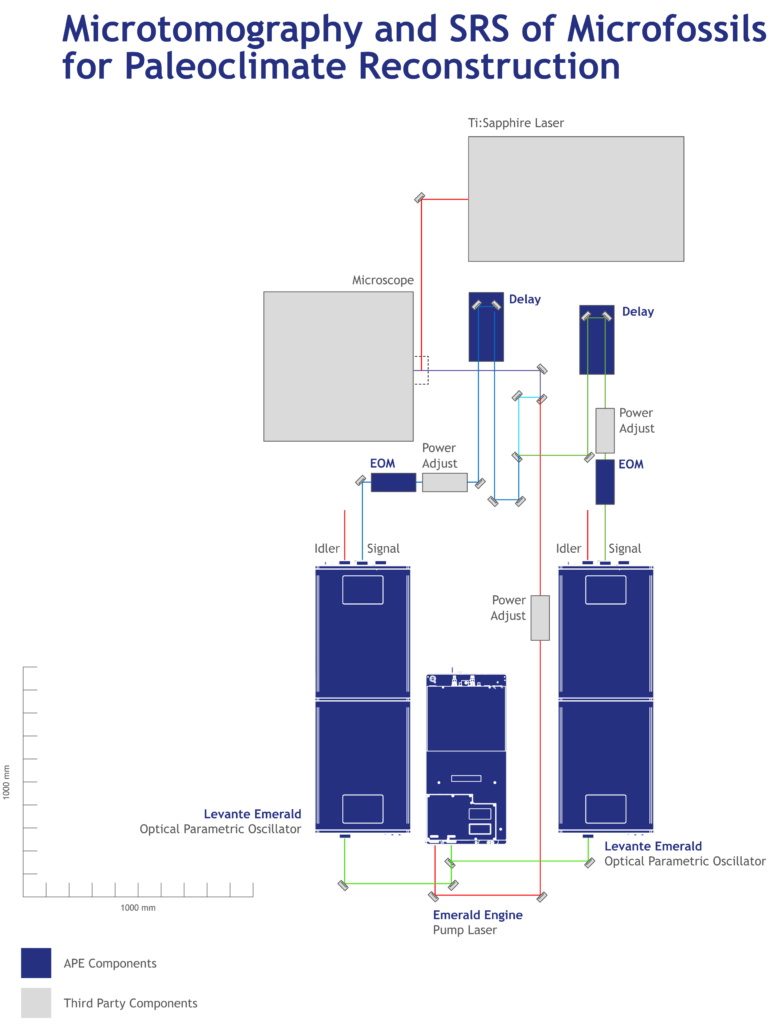

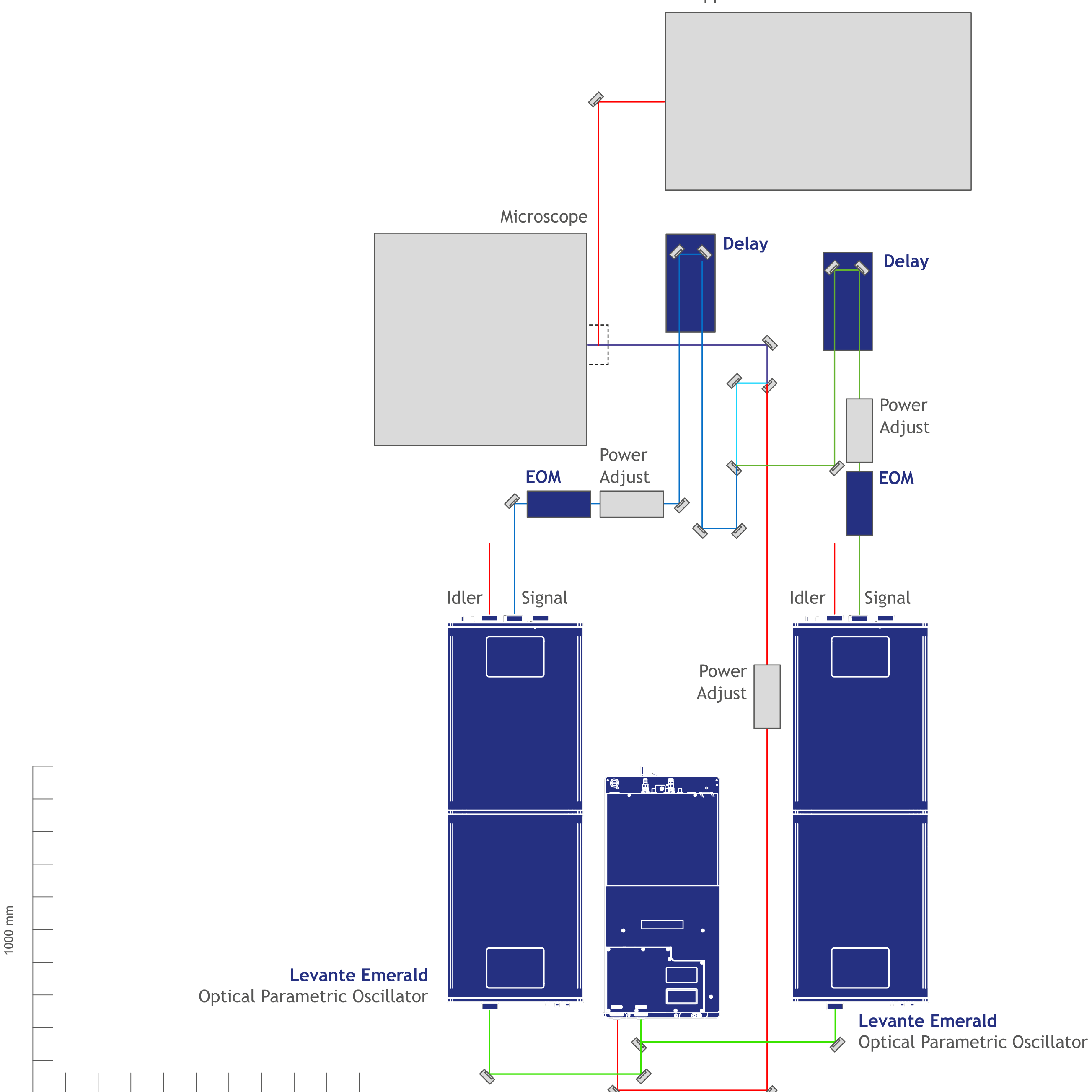

Microtomography of Microfossils for Paleoclimate Reconstruction

The structure and morphology of microfossils are mainly studied by optical microscopes, electron microscopes and micro-Computed tomography μ-CT. However, getting accurate three dimensional structures of microfossils with these techniques can be challenging in terms of measurement accuracy and analysis duration. Tomographic stimulated Raman scattering microscopy enables to record 3D images of fossils in reasonable times, based on the minerals contained in a sample.

Installation Site: KU Leuven, Centre for Surface Chemistry and Catalysis, Netherlands

Inspired by: Maarten Roeffaers and Christian Steuwe, KU Leuven

Microtomography of Microfossils Customized Systems

Laser ARPES Customized Systems
Angle-resolved photoemission spectroscopy, UV, Photoelectron Spectroscopy

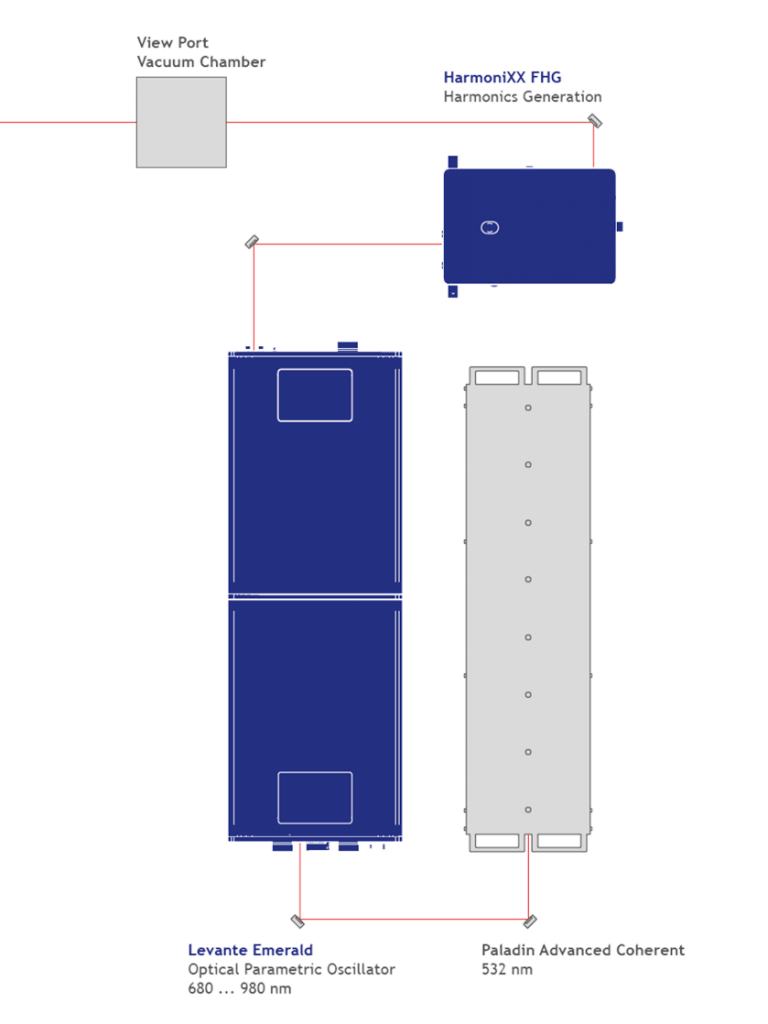

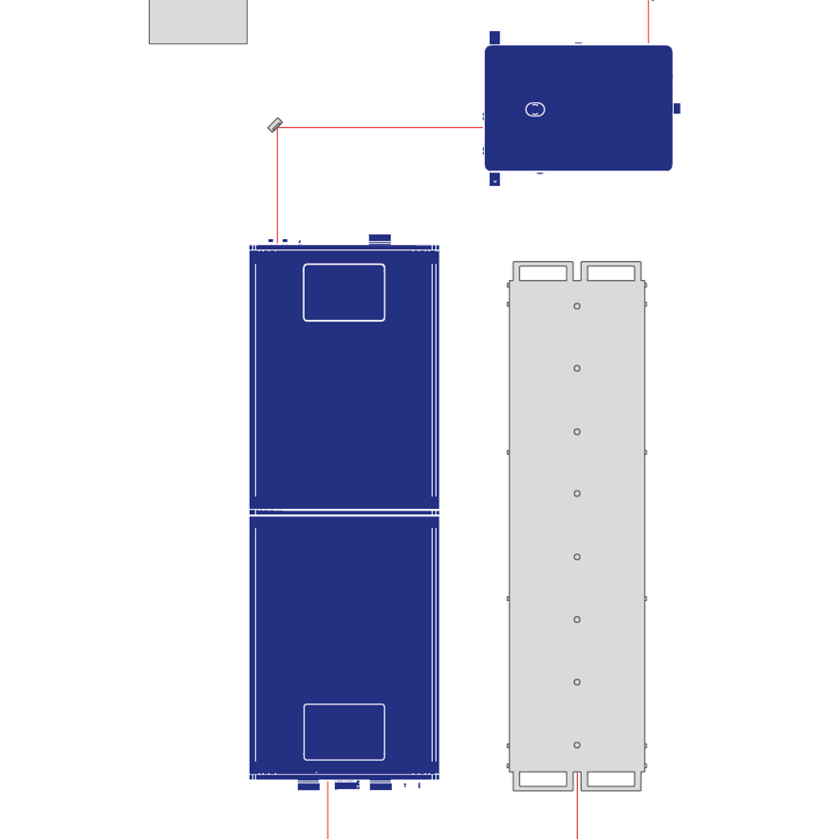

Laser ARPES With a High Power Tunable ps UV Source

Laser-based ARPES (Angle-Resolved Photo-Emission Spectroscopy) is a form of ARPES that uses a laser as the light source. Comparing to a synchrotron light source, laser-based ARPES offer some advantages: It fits on a table (ok … a large table) and makes experiment schedules independent from rare beam times at synchrotron facilities. The UV-laser provides an ultra-high energy resolution of down to 0.1 meV while providing a very high photon flux.

Installation Site: SPECS Nano Surface Analysis GmbH, Germany

Inspired by: Thorsten Kampen, SPECS

Questions or Ideas?

Do not hesitate to contact us if you have questions or if you are looking for different specifications.

Our colleagues from R&D will be happy to dicuss your requirements in detail.
