Pulse Quality Online Monitoring & Data Logging


Tracking Ultrashortpulse Laser- and Process-Stability


For many applications, the pulse information from a lasers datasheet is sufficient. If, however, you are dealing with ultrashort pulse lasers that underlie non-linear distortion effects (e.g. fiber lasers), pulsed lasers with changeable pulse durations (e.g. pulse compressor) or if your application results strongly depend on stable pulse conditions, peakDetect is the right tool for you.


Pulse Variations Captured with peakDetect

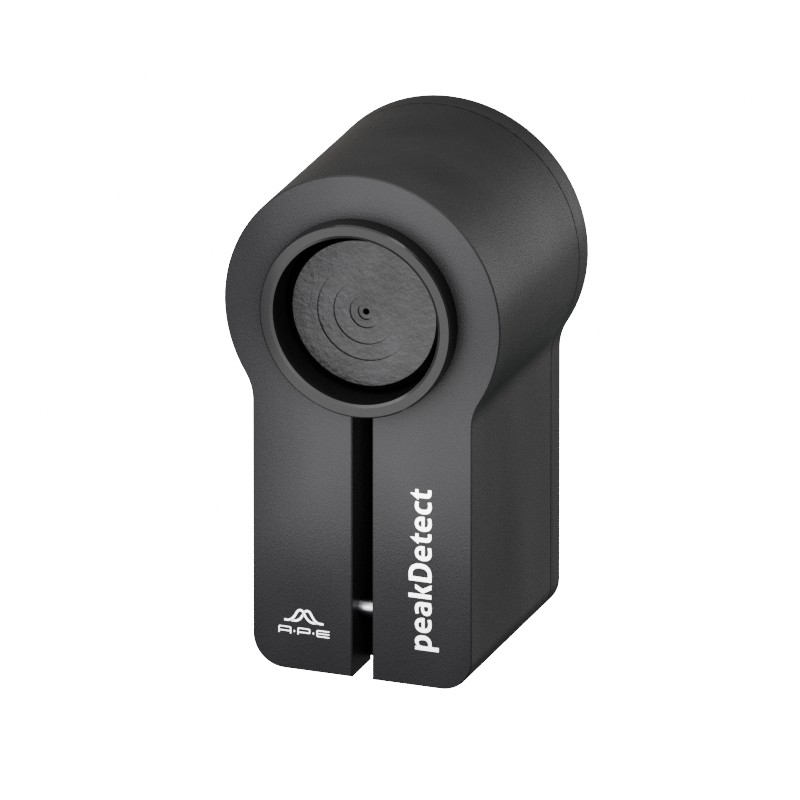

peakDetect by APE is an innovative measurement device for precise monitoring of laserpulse variations to help you maintain reliable laser and process stability. Therefore, peakDetect measures the laser repetition rate, the average power, and the non-linear efficiency. These measurements enable the calculation of the relative peak power, and the pulse quality, that is, how far is the pulse above the Fourier-transform limit.

Robust Masterpiece

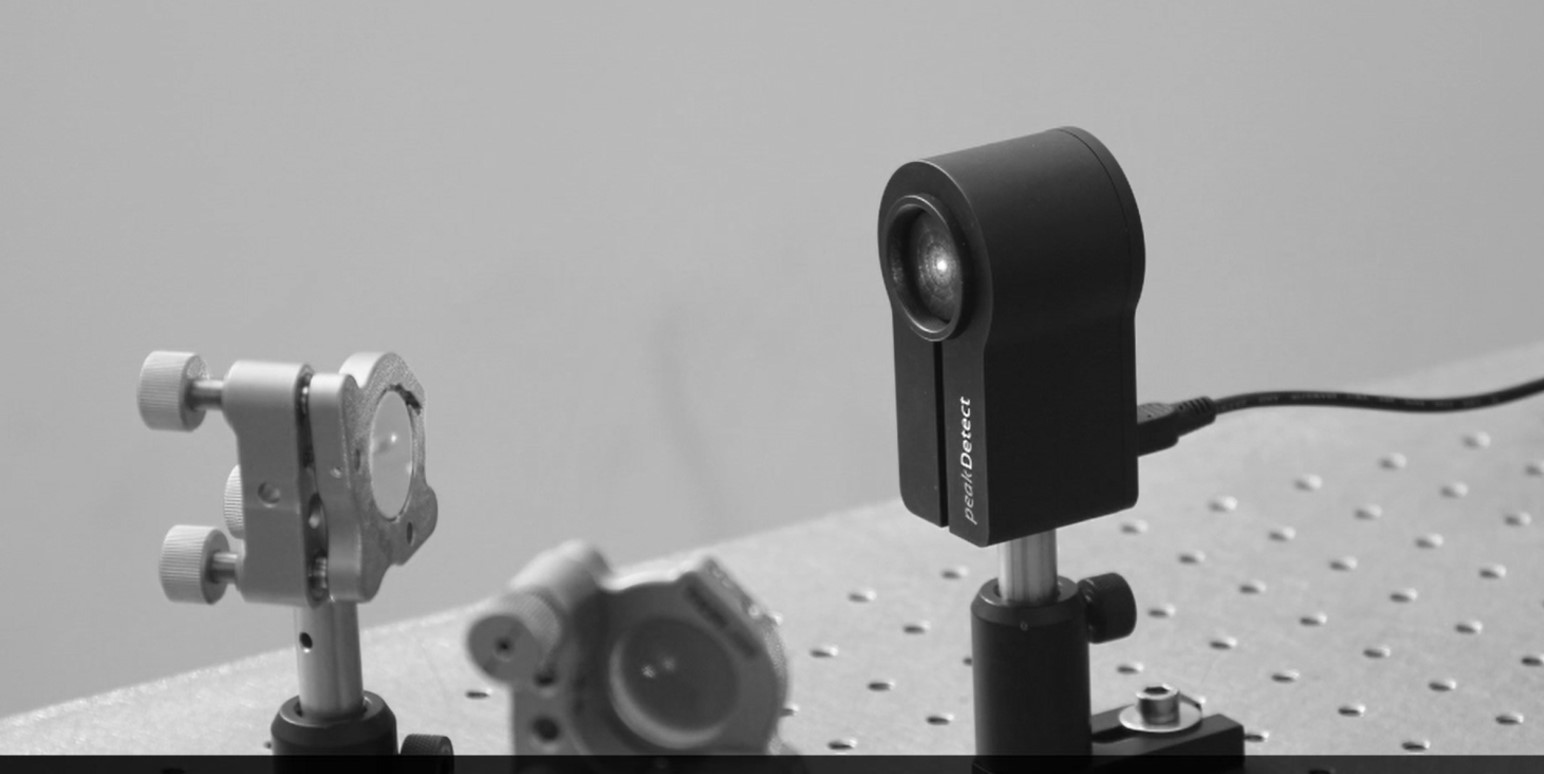

The compact and robust design makes peakDetect ideal for incorporation into larger laser systems or production lines and as a portable service tool.

At a Glance

  • Monitoring pulse changes over time
  • Data logging of pulse properties
  • Quantifying pulse parameters for femto and picosecond lasers
  • Small form factor for easy integration into laser setups

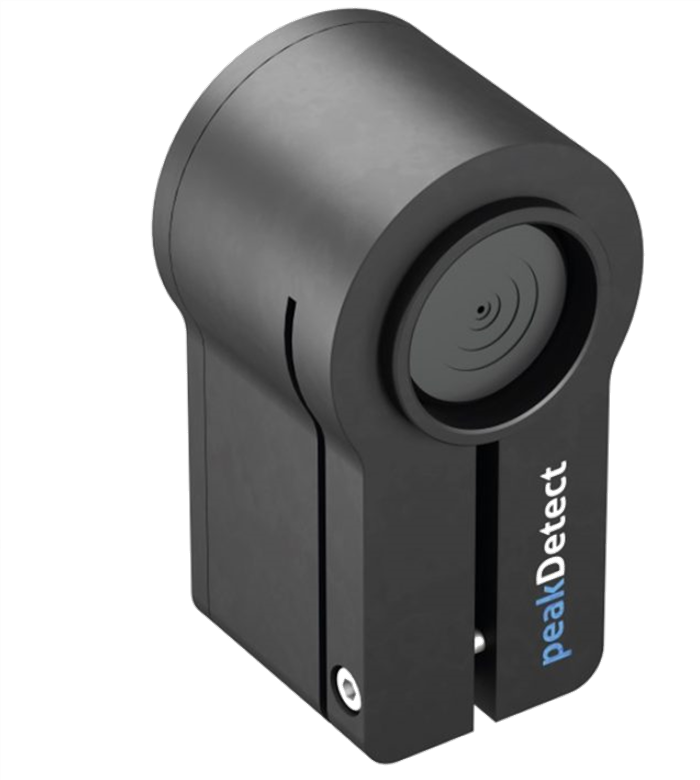

OEM & Customization

peakDetect is your key to the world of measuring pulse variations. Since no two laser models are the same, APE helps you to customize your individual peakDetect device. Starting with your specific laser parameters and objectives, we support you each step of the way, towards implementing a peakDetect solution at your company. In-house demos are available at any time – just contact us.


Specifications

At a Glance

peakDetect
Pulse width50 fs … 10 ps
Wavelength range700 nm … 1100 nm
Recommended repetition rate1 kHz … >1 MHz
Input polarizationLinear, any
Computer interfaceUSB / Java based software
Customization possible
Power supplyvia USB connection
HousingAl black coated housing
44 mm x 80 mm x 41 mm
OEM housings on request
Customization or OEMAvailable, please ask for details
  • Monitoring pulse changes over time
  • Data logging of pulse properties
  • Quantifying pulse parameters for femto and picosecond lasers
  • Small form factor for easy integration into laser setups
  • OEM & customization available

Datasheets & Brochures

APE peakDetect Rev. 4.1.1. (pdf / english)

 Step Files

APE-peakDetect-Stepfile-V4-20141029 (.stp 3D CAD model with overall dimensions)


Contact Us







I consent to APE's data safety & privacy conditions.

You need to consent to APE's data safety & privacy conditions before the "send" button is active. You find the data safety & privacy conditions here.

or

Email & Phone Contacts

APE has distributors around the world to give you the best support. Choose a country to find your local sales contact:

APE Angewandte Physik & Elektronik GmbH
Plauener Strasse 163-165 | Haus N
13053 Berlin, Germany

Phone: +49 30 986 011-30
Fax: +49 30 986011333

Sales: sales@ape-berlin.de
Support: service@ape-berlin.de

Coherent Scientific pty. Ltd.
Hilton SA 5033, South Australia

Phone: +61 8 8150 5200
Email: sales@coherent.com.au
Website: www.coherent.com.au

APE Angewandte Physik & Elektronik GmbH
Plauener Strasse 163-165 | Haus N
13053 Berlin, Germany

Phone: +49 30 986 011-30
Fax: +49 30 986011333

Sales: sales@ape-berlin.de
Support: service@ape-berlin.de

PulsePower Technology Ltd.
Beijing, Haidan District
China 100090

Phone:+86 10 62565117
Email: mlu@pulsepower.cn
Website: www.pulsepower.cn



Pinnacle Scientific Cooperation
Hangzhou, Jianggan District
China 310020

Phone: +86 571 88225151
Email: sales@psci.cn
Website: www.psci.cn

OptiXs
199 00 Praha 9, Česko

Phone: +420 212 247 293
Email: info@optixs.cz
Website: www.optixs.cz

APE Angewandte Physik & Elektronik GmbH
Plauener Strasse 163-165 | Haus N
13053 Berlin, Germany

Phone: +49 30 986 011-30
Fax: +49 30 986011333

Sales: sales@ape-berlin.de
Support: service@ape-berlin.de

Optoprim
40 rue Victor Basch, 91300 Massy, France

Phone: +33 1 419 061 80
Email: info@optoprim.com
Website: www.optoprim.com

Laser Sciences Services Pvt. Ltd.

Phone: +91 2778 1673
Email: sales@laserscience.in
Website: www.laserscience.co.in/

Ammo Engineering E.O.(1995) Ltd.
Petach Tikva 49171, Israel

Phone: +972 3 9239 666
Email: shmuelr@ammo.co.il
Website: www.ammo.co.il

Optoprim Srl.

UFFICIO DI MONZA
Via Rota, 37
20900 Monza (MB)

Phone: +39 039 834977
Email: info@optoprim.it
Website: www.optoprim.it

UFFICIO DI ROMA
Via Monte Giberto, 15
00138 Roma

Phone: +39 06 87657838
Email: info@optoprim.it
Website: www.optoprim.it

Phototechnica Corporation
Saitama 336-0017, Japan

Phone: +81 48 871 0067
Email: voc@phototechnica.co.jp
Website: www.phototechnica.co.jp

RayVis
Seoul 137-862, Korea

Phone: +82 2 3461 1103
Email: sales@rayvis.co.kr
Website: www.rayvis.co.kr

STARK SCIENTIFIC S.A. DE C.V.
Guty Cardenas 147, Guadalupe Inn
Ciudad de Mexico, C.P. 01020, Mexico

Main Contact: Vicente Garcia Gomez

Phone: +52 555 401 8254
Email: sales@starkscientific.com

Eurotek International
02-668 Warsaw, Poland

Phone: +48 22 843 79 40
Email: eurotek@eurotek.com.pl
Website: www.eurotek.com

Innova Scientific S.L.
28290 Las Rozas de Madrid, Espana

Phone: +34 91 7105650
Email: info@innovasci.com
Website: www.innovasci.com

AceXon Technologies Pte. Ltd.
Singapore 658065

Phone: +65 6565 7300
Email: sales@acexon.com
Website: www.acexontech.com

Innova Scientific S.L.
28290 Las Rozas de Madrid
Espana

Phone: +34 91 7105650
Email: info@innovasci.com
Website: www.innovasci.com

APE Angewandte Physik & Elektronik GmbH
Plauener Strasse 163-165 | Haus N
13053 Berlin, Germany

Phone: +49 30 986 011-30
Fax: +49 30 986011333

Sales: sales@ape-berlin.de
Support: service@ape-berlin.de

SuperbIN Company Ltd.
5F., No. 41, Ln. 15, Sec. 6, Minquan E. Rd., Taipei 114
Taiwan, R.O.C.

Phone: +886-2-2793-0866
Fax: +886-2-2793-0855
Email: info@superbin.com.tw
Website: www.superbin.com.tw

APE Applied Physics & Electronics, Inc.
Vancouver | WA | USA

Phone: +1 888 690 3250
Sales: sales@ape-america.com
Support: service@ape-america.com

Application Example

peakDetect to Optimize a fs Laser Compressor

In this application example we optimize a fs laser compressor to achieve maximal temporal compression of the pulse. Every change of the compressor tuning settings will be monitored  and displayed in the time plots. In addition, we change the frequency setting of an  pulse picker integrated into the laser, which is monitored and displayed in the time plot of the peakDetect software.  We use peakDetect to optimize the pulse. The compressor tuning is done in such a way that the pulse quality reaches a desired value.
