Harmonic Generation

HarmoniXX FHG

Frequency Quadrupling with Fourth Harmonic Generation


Fourth Harmonic Generation – Frequency Quadrupling for Tunable and Fixed Frequency Laser


Fourth Harmonic Generation

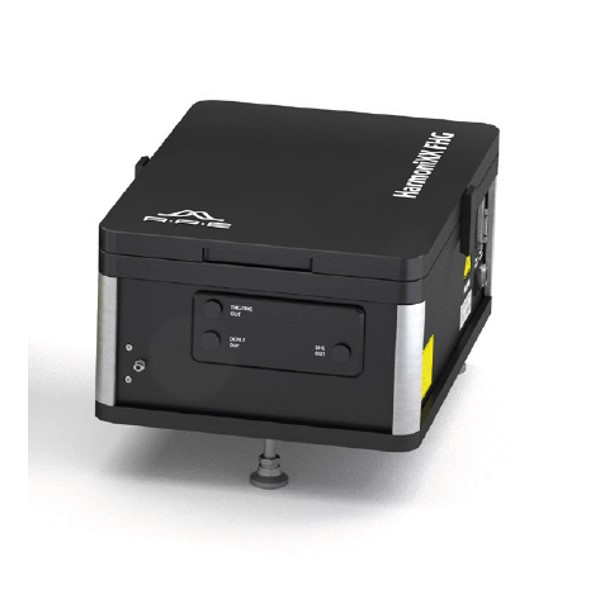

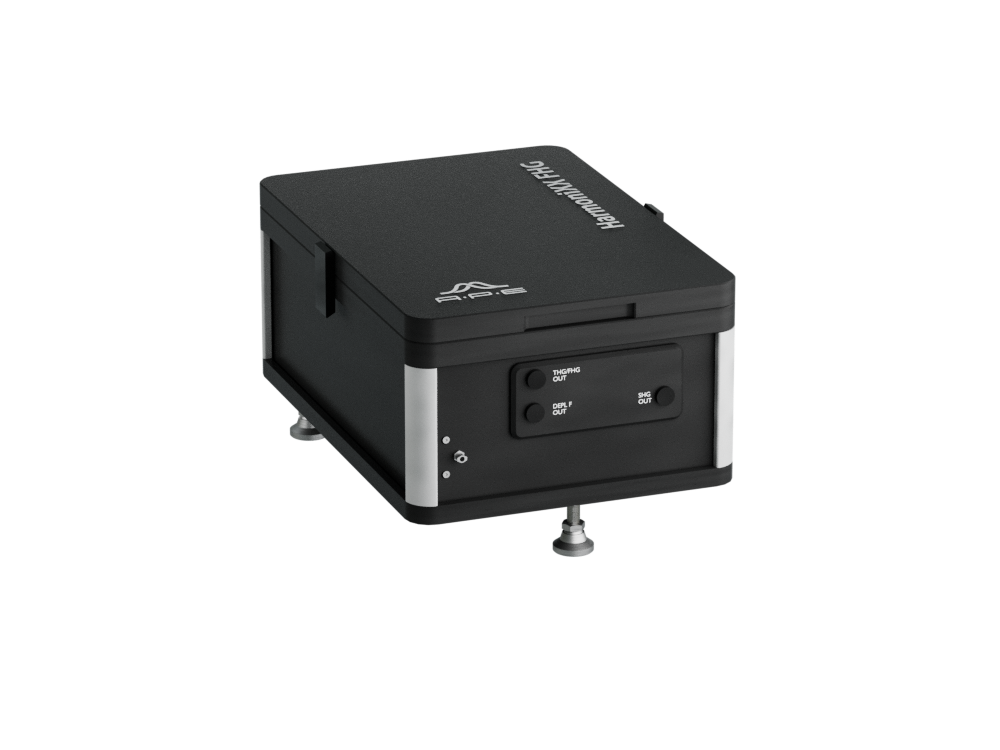

As part of our HarmoniXX product line, the HarmoniXX FHG – Fourth Harmonic Generation – is a frequency converter for quadrupling the frequency of ultra short-pulse lasers. As a result, the final frequency is four times of the frequency of the incoming laser beam.

User-friendly Design

The focus is on user-friendliness and a compact design. By featuring a quick exchange of optics, the HarmoniXX devices can be used for a wide pulse duration range, from femtoseconds (fs) to several picoseconds (ps). All units are optimized for highest conversion efficiency at various laser power levels. They also display minimum pulse broadening while maintaining good spatial beam profile.

At a Glance

  • Fourth Harmonic Generation FHG
  • High conversion efficiency
  • Easy alignment and automatic wavelength tuning
  • Suitable for both tunable and fixed frequency fs and ps lasers
  • Excellent pointing stability and beam profile
  • Remote operation via software GUI

Specifications

At a Glance

HarmoniXX FHG 2+2 Specification
Input Wavelength Range840 ... 920 nm
(other wavelengths on request)
Output FHGDown to 210 nm (e.g. 210 ... 230 nm for TiSa)

Down to 190 nm (e.g. 190 ... 210 nm for TiSa) with FHG 3+1 (see specs below)
Output SHGAvailable
Output FundamentalAvailable
Pulse Durationfs or ps
Output SHGAvailable
Conversion EfficiencyFHG > 4 % (fs)*
*depends on laser model / pulse duration
Walkoff CompensationBuilt-in mechanical walkoff compensator
Output FHGDown to 210 nm (e.g. 210 ... 230 nm for TiSa)

Down to 190 nm (e.g. 190 ... 210 nm for TiSa) with FHG 3+1 (see specs below)
Polarization (Linear)Input: horizontal, FHG Out: horizontal, SHG Out: vertical, Fundamental Out: horizontal
AutomationFully Motorized, GUI /Software included, Auto Power Adjustment as Option
Options
Auto Power AdjustmentAutomated output power optimization at the press of a button
Quick Exchangable Optics SetWavelength range exchange sets;
Pulse duration exchange set fs - ps
FHG 3+1 Specification
Input Wavelength Range760 ... 920 nm
(other wavelengths on request)
Output SHG, THGAvailable
Output FundamentalAvailable
Conversion EfficiencyFHG < 0.1 % (fs)*
*depends on laser model / pulse duration
Polarization (Linear)Input: horizontal, FHG Out: vertical, THG Out: horizontal, SHG Out: vertical, Fundamental Out: vertical
AutomatizationNot included; Available on request
  • High conversion efficiency
  • Automatic wavelength tuning
  • THG and SHG included
  • Down to 210 nm (FHG 2+2) or 190 nm (FHG 3+1)
  • For both tunable and fixed frequency fs and ps lasers
  • Excellent pointing stability and beam profile
  • Software included
  • Remote operation via software GUI

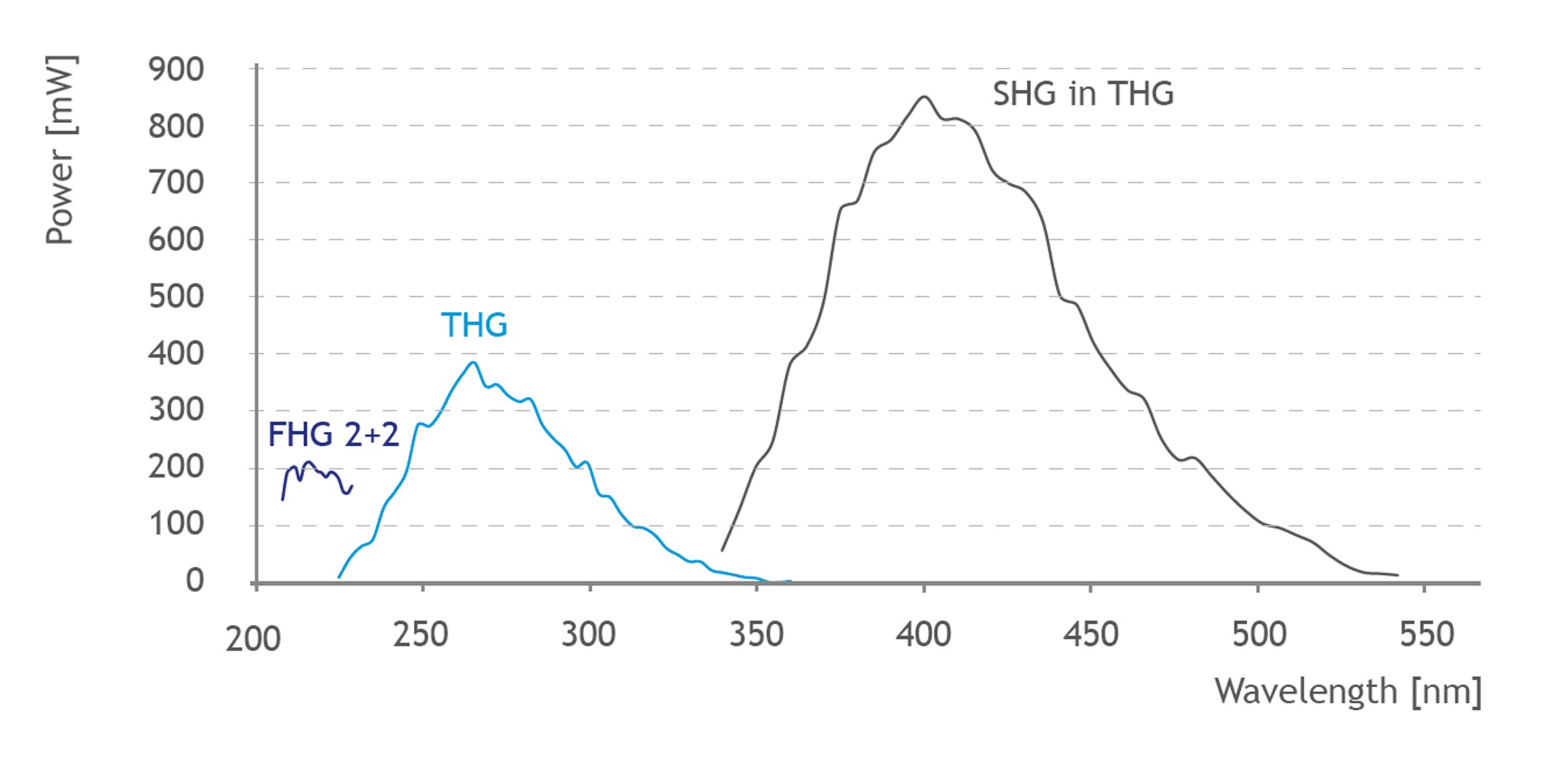

Above: Pumped with Ti:Sapphire, typical tuning curves of HarmoniXX THG, SHG in THG and FHG 2+2 power pumped with TiSa laser at about 3.5 W, 80 MHz, 130 fs.

Datasheets & Brochures


Contact Us







I consent to APE's data safety & privacy conditions.

You need to consent to APE's data safety & privacy conditions before the "send" button is active. You find the data safety & privacy conditions here.

or

Email & Phone Contacts

APE has distributors around the world to give you the best support. Choose a country to find your local sales contact:

APE Angewandte Physik & Elektronik GmbH
Plauener Strasse 163-165 | Haus N
13053 Berlin, Germany

Phone: +49 30 986 011-30
Fax: +49 30 986011333

Sales: sales@ape-berlin.de
Support: service@ape-berlin.de

Coherent Scientific pty. Ltd.
Hilton SA 5033, South Australia

Phone: +61 8 8150 5200
Email: sales@coherent.com.au
Website: www.coherent.com.au

APE Angewandte Physik & Elektronik GmbH
Plauener Strasse 163-165 | Haus N
13053 Berlin, Germany

Phone: +49 30 986 011-30
Fax: +49 30 986011333

Sales: sales@ape-berlin.de
Support: service@ape-berlin.de

PulsePower Technology Ltd.
Beijing, Haidan District
China 100090

Phone:+86 10 62565117
Email: mlu@pulsepower.cn
Website: www.pulsepower.cn



Pinnacle Scientific Cooperation
Hangzhou, Jianggan District
China 310020

Phone: +86 571 88225151
Email: sales@psci.cn
Website: www.psci.cn

OptiXs
199 00 Praha 9, Česko

Phone: +420 212 247 293
Email: info@optixs.cz
Website: www.optixs.cz

APE Angewandte Physik & Elektronik GmbH
Plauener Strasse 163-165 | Haus N
13053 Berlin, Germany

Phone: +49 30 986 011-30
Fax: +49 30 986011333

Sales: sales@ape-berlin.de
Support: service@ape-berlin.de

Optoprim
40 rue Victor Basch, 91300 Massy, France

Phone: +33 1 419 061 80
Email: info@optoprim.com
Website: www.optoprim.com

Laser Sciences Services Pvt. Ltd.

Phone: +91 2778 1673
Email: sales@laserscience.in
Website: www.laserscience.co.in/

Ammo Engineering E.O.(1995) Ltd.
Petach Tikva 49171, Israel

Phone: +972 3 9239 666
Email: shmuelr@ammo.co.il
Website: www.ammo.co.il

Optoprim Srl.

UFFICIO DI MONZA
Via Rota, 37
20900 Monza (MB)

Phone: +39 039 834977
Email: info@optoprim.it
Website: www.optoprim.it

UFFICIO DI ROMA
Via Monte Giberto, 15
00138 Roma

Phone: +39 06 87657838
Email: info@optoprim.it
Website: www.optoprim.it

Phototechnica Corporation
Saitama 336-0017, Japan

Phone: +81 48 871 0067
Email: voc@phototechnica.co.jp
Website: www.phototechnica.co.jp

RayVis
Seoul 137-862, Korea

Phone: +82 2 3461 1103
Email: sales@rayvis.co.kr
Website: www.rayvis.co.kr

STARK SCIENTIFIC S.A. DE C.V.
Guty Cardenas 147, Guadalupe Inn
Ciudad de Mexico, C.P. 01020, Mexico

Main Contact: Vicente Garcia Gomez

Phone: +52 555 401 8254
Email: sales@starkscientific.com

Eurotek International
02-668 Warsaw, Poland

Phone: +48 22 843 79 40
Email: eurotek@eurotek.com.pl
Website: www.eurotek.com

Innova Scientific S.L.
28290 Las Rozas de Madrid, Espana

Phone: +34 91 7105650
Email: info@innovasci.com
Website: www.innovasci.com

AceXon Technologies Pte. Ltd.
Singapore 658065

Phone: +65 6565 7300
Email: sales@acexon.com
Website: www.acexontech.com

Innova Scientific S.L.
28290 Las Rozas de Madrid
Espana

Phone: +34 91 7105650
Email: info@innovasci.com
Website: www.innovasci.com

APE Angewandte Physik & Elektronik GmbH
Plauener Strasse 163-165 | Haus N
13053 Berlin, Germany

Phone: +49 30 986 011-30
Fax: +49 30 986011333

Sales: sales@ape-berlin.de
Support: service@ape-berlin.de

SuperbIN Company Ltd.
5F., No. 41, Ln. 15, Sec. 6, Minquan E. Rd., Taipei 114
Taiwan, R.O.C.

Phone: +886-2-2793-0866
Fax: +886-2-2793-0855
Email: info@superbin.com.tw
Website: www.superbin.com.tw

APE Applied Physics & Electronics, Inc.
Vancouver | WA | USA

Phone: +1 888 690 3250
Sales: sales@ape-america.com
Support: service@ape-america.com

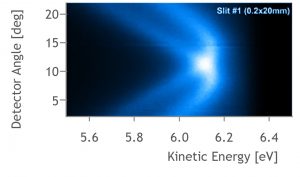

Laser ARPES with FHG 3+1 for Deep UV 190 nm
