OPO – Optical Parametric Oscillator

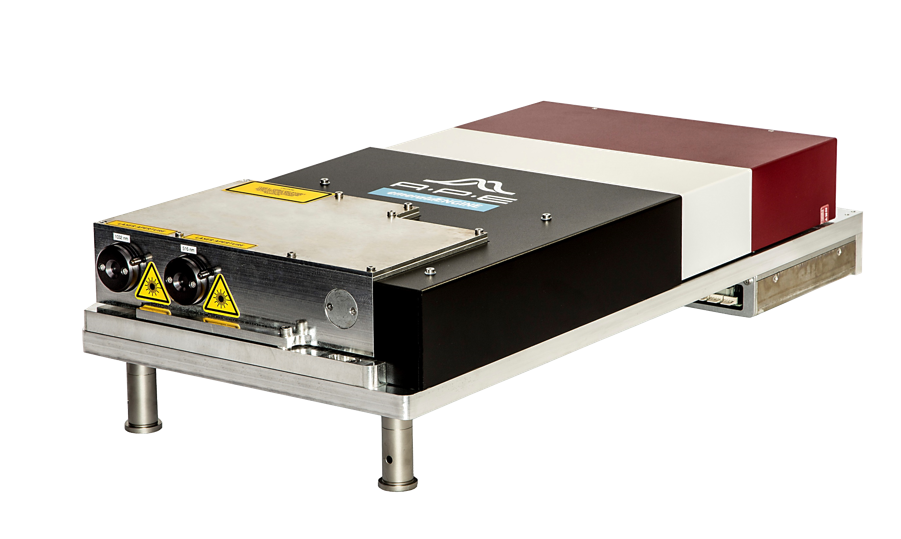

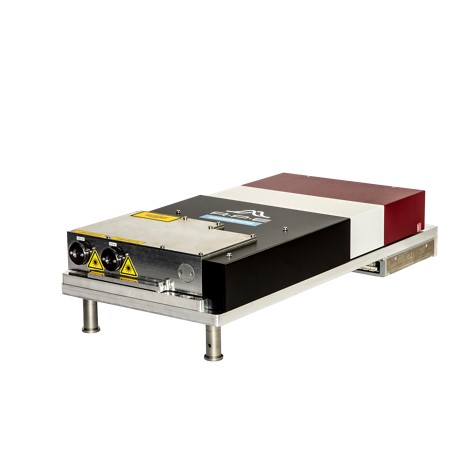

Emerald Engine

Yb-fiber-based Pump Laser with 516 nm + 1032 nm


OPO ps Pump Laser with 516 nm and 1032 nm


At a Glance

  • Yb fiber laser-based
  • Green and IR beam are intrinsically synchronized and jitter-free
  • Offers pulses as short as 2 ps with a spectral width of only 10 cm-1
  • Laser repetition rate stabilized by cooled base plate
  • Windows based Control Software included
  • Sync-Out signal

Overview

Emerald Engine is a IR fiber based pump laser with a pulse width of either 2 ps, alternatively 5 ps. The pump laser comes with a frequency doubling unit included, resulting in two beams: a frequency doubled output with 516 nm and output power > 3 W, and the undepleted fundamental output with 1032 nm with output power > 0.75 W. Both beams are intrinsically synchronized and jitter-free.

For applications that require a higher output power the Emerald Engine HP is available with an output power of > 6 W for the frequency doubled output and > 3 W for the undepleted fundamental output.

Emerald Engine is Ideal Suited to Pump Levante Emerald OPO


Specifications

Specification Emerald Engine
Version Duo with 2 Outputs 516 nm + 1032 nm
Duo | Duo longpulseHP Duo | HP Duo longpulse
Repetition Rate80 MHz ± 0.15 MHz80 MHz ± 0.15 MHz
Wavelength 1516 nm ± 0.75 nm                516 nm ± 0.75 nm
Output Power 1*> 3 W> 6.5 W
Pulse Width 1~ 2 ps | ~ 5 ps~ 2 ps | ~ 5 ps
Spectral Width 1< 0.5 nm (< 20 cm-1)< 0.5 nm (< 20 cm-1)
Polarization 1*VerticalVertical
Wavelength 21032 nm ± 1.5 nm1032 nm ± 1.5 nm
Output Power 2*> 0.75 W | > 1 W> 1 W
Pulse Width 2~ 2 ps | ~ 5.5 ps~ 2 ps | ~ 5.5 ps
Spectral Width 2~ 1 nm (~ 10 cm-1)
~ 1 nm (~ 10 cm-1)
Polarization 2HorizontalHorizontal
Version Green with 1 Output 516 nm
Green | Green longpulseHP Green | HP Green longpulse
Repetition Rate80 MHz ± 0.15 MHz80 MHz ± 0.15 MHz
Wavelength 516 nm ± 0.75 nm 516 nm ± 0.75 nm
Output Power*> 3.5 W> 7 W
Pulse Width~ 2 ps | ~ 5 ps~ 2 ps | ~ 5 ps
Spectral Width< 0.5 nm (< 20 cm-1)< 0.5 nm (< 20 cm-1)
Polarization*VerticalVertical
Version IR with 1 Output 1032 nm
IRHP IR
Repetition Rate80 MHz ± 0.15 MHz80 MHz ± 0.15 MHz
Wavelength1032 nm ± 1.5 nm1032 nm ± 1.5 nm
Output Power*> 8 W> 16 W
Pulse Width~ 2 ps~ 2 ps
Spectral Width~ 1 nm (~ 10 cm-1)
~ 1 nm (~ 10 cm-1)
Polarization*HorizontalHorizontal
* Customized alternatives on request
