Difference Frequency Generation


Convert Wavelengths into the MID-IR with Difference Frequency Generation (DFG)


Difference Frequency Generation

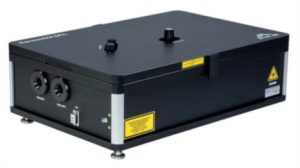

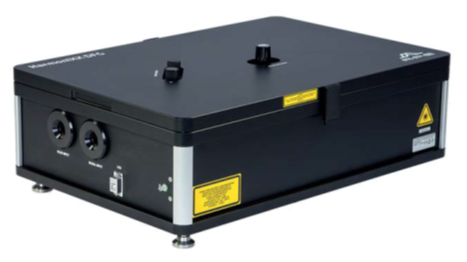

HarmoniXX DFG is designed to extend APE’s product line of wavelength converters into the Mid IR range. It mixes Signal and Idler output beams of synchronously pumped OPOs and is available for various pump sources. The DFG output wavelength can be changed easily by tuning the OPO Signal. It covers a wide wavelength range of 4 … > 15 μm.

User-friendly Design

HarmoniXX DFG has an integrated wavelength separation for maximum usability. The output is very stable benefitting from the fact that the OPO output pulses are intrinsically jitter-free. The DFG is available for femtosecond and picosecond OPOs of different wavelength ranges.

At a Glance

  • Compatible with OPO-X and Levante IR
  • Easy manual wavelength tuning
  • Integrated beam overlap
  • Delay line included
  • Connection for purge included

picosecond Version

HarmoniXX DFG is available in different versions, depending on the pump source and the pulse width. The picosecond version can be pumped by pulses with 2 … 6 ps pulse width and is able to reach wavelengths from 4.8 … 15 μm. It is optimized for high resolution measurements and pulses with narrow bandwidth. Therefore it is perfect for Sum Frequency Mixing Spectroscopy.

femtosecond Version

The femtosecond version of HarmoniXX DFG delivers short pulses with broad spectral bandwidth in the MIR. The standard version can be tuned from 4.8 … 15 μm. The HarmoniXX DFG fs is especially suitable for applications that require high time-resolution such as fs s-SNOM. The crystal used in the HarmoniXX DFG fs is optimized for high output power and best bandwidth conversion.

Specifications

HarmoniXX DFGLevante IR fsLevante IR psOPO-X fs (with Idler)
Wavelength range4.8 µm … 16.7 µm (2080 cm-1 … 600 cm-1)4.0 µm … 11 µm (2500 cm-1 … 910 cm-1)
Power45 mW at 6.0 µm (1667 cm-1)75 mW at 6.0 µm (1667 cm-1)
3.5 mW at 4.0 µm (2500 cm-1)
Pulse width, typical<200 fs2 ps200 fs
Spectral bandwidth, typical>125 cm-1 at 6.0 µm (1667 cm-1)10 cm-1 … 15 cm-1 at 6.0 µm (1667 cm-1)90 cm-1 at 4.0 µm (2500 cm-1)
OPO pump parameter12 W, 120 fs, 76 MHz, ~1 µm8 W, 2 ps, 80 MHz, ~1 µm3.5 W, 140 fs, 80 MHz, 800 nm

Typical Data

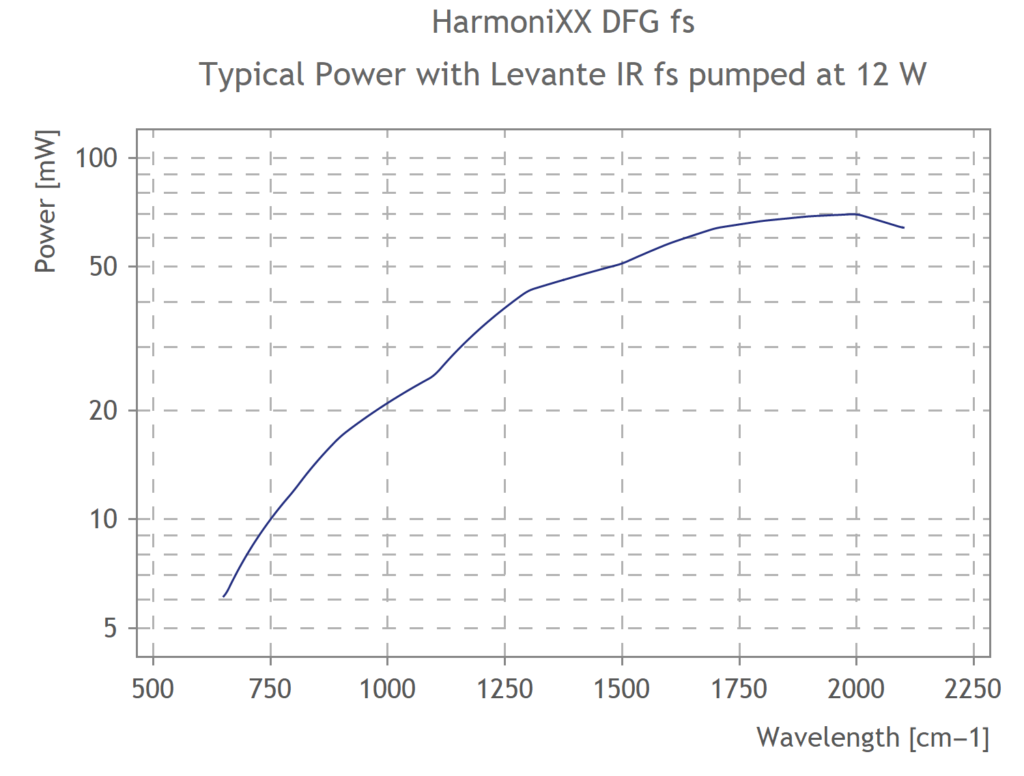

Typical DFG power vs. wavenumber

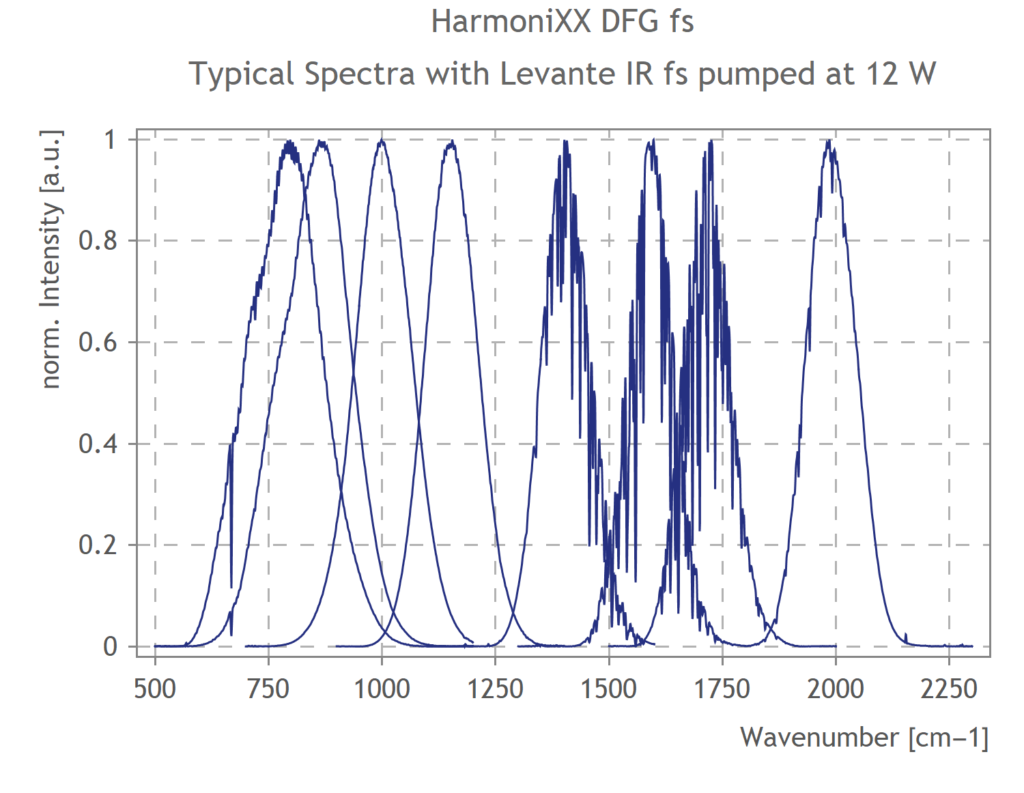

Typical DFG spectra
