Harmonic Generation

HarmoniXX Select SHG

Pulse Picking & Second Harmonic Generation Combined


Combined Solution for Pulse Picking &
Second Harmonic Generation


Pulse Picking and SHG with HarmoniXX Select SHG

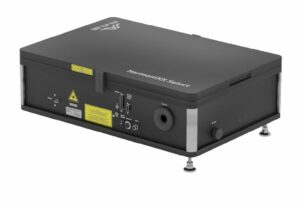

HarmoniXX Select is the combination of two well-known APE products in one box: Adjusting the repetition rate by pulse picking (pulseSelect) + second harmonic wavelength conversion (HarmoniXX SHG) of modelocked lasers. The on-board pulse picker with its low dispersive design is developed for requirements associated with ultrashort pulse laser technology. The integrated second harmonic generator features frequency doubling of the picked input laser beam. With its flexible design, the HarmoniXX Select SHG can be adapted to Ti:Sa lasers or other broadly tuneable lasers, such as Coherent Discovery or Spectra Physics Insight.

At a Glance

  • For input wavelengths between 660 … 1320 nm
  • Easy motorized operation of SHG wavelengths in the range of 330 … 660 nm
  • Adjustable output repetition rate from single-shot up to 40 MHz
  • Pulse picking with superior pulse contrast ratio
  • External trigger: Single-shot up to 3 MHz

Specifications

At a Glance

HarmoniXX Select Specification
Input Laser Specification
Input Wavelength Range680 ... 1080 nm (e.g. TiSa) or 660 ... 1320 nm
Input Repetition Rate72 ... 81 MHz (to be specified with 0.5 MHz accuracy at the time of order; other rep. rates on request)
Input Power Max5 W
PolarizationHorizontal, linear
Output Picked SHG
Wavelength Range340 ... 540 nm or 330 ... 660 nm (depending on input wavelength)
Contrast Ratio100,000:1 for non-adjacent pulses
3000:1 for adjacent pulses; at 400 nm with division ratio 20
Combined Conversion Efficiency17.5% at 400 nm and division ratio 20 for Chameleon Ultra II / Vision II / Chameleon Discovery NX; 15% at 400 nm and division ratio 20 for Insight X3
Repetition RateSingle-shot to 40 MHz (based on 80 MHz input repetition rate
PolarizationVertical, linear
Output Picked Fundamental
Output fundamental only, or simultaneous with SHG possible
Wavelength Range680 ... 1080 nm or 660 ... 1320 nm
Contrast Ratio500:1 for non-adjacent pulses
75:1 for adjacent pulses; at 800 nm with division ratio 20
Conversion Efficiency50% at 800 nm and division ratio 20
Repetition RateSingle-shot to 40 MHz (based on 80 MHz input repetition rate)
PolarizationHorizontal, linear
Further Specifications
Division Ratio Picker2 ... 260,000 (integer values) or external trigger
External TriggerTTL; Single-shot up to 3 MHz
SHG MotorizationPhase matching angle set to factory calibrated values
  • SHG and pulse picking combined in one box
  • For input wavelengths between 660 … 1320 nm
  • Easy motorized operation of SHG wavelengths in the range of 330 … 660 nm
  • Adjustable output repetition rate from single-shot up to 40 MHz
  • Pulse picking with superior pulse contrast ratio
  • External trigger: Single-shot up to 3 MHz
