Overview
The OPO-X fs is a synchronously pumped, tunable OPO with high conversion efficiency in the IR-range, generating output from 1000 nm to 4 µm. It is driven by mode-locked femtosecond Ti:Sa lasers and its design allows independent wavelength tuning of the Ti:Sa laser and OPO. Intracavity second-harmonic generation (SHG) within the OPO enables efficient conversion into the VIS-range. Combined with harmonic generators for the Ti:Sa laser extending down to the 4th harmonic, the systems can be configured from 190 nm to 4 µm, providing 200 fs pulses and shot-noise-limited performance. It is ideal for nonlinear and time-resolved spectroscopy, multiphoton microscopy and pump-probe experiments. If the Ti:Sa pump laser is convertible between femtosecond and picosecond operation, this flexibility is also available for the OPO-X.
Systems can be further customized using pulse pickers (pulseSelect) to reduce the repetition rate, spectral slicers (pulseSlicer) for bandwidth reduction, optical delay lines (scanDelay) and dispersion compensators (femtoControl). Multiple OPOs can also be pumped simultaneously by a single pump laser to generate independent, tunable, and temporally synchronized pulses.
Customization is our specialty. If your requirements are not listed in the specification table, please feel free to contact us.
Compatible Pump Lasers
The OPO-X is compatible with and field tested for many mode-locked femtosecond Ti:Sa lasers, for example:
- Coherent Chameleon family and Mira series
- Spectra Physics MaiTai and Tsunami series
- Others on request
Applications
- Nonlinear and time-resolved spectroscopy
- Multiphoton microscopy
- Pump-probe experiments
At a Glance
- Extends the tuning range of fs-Ti:Sa lasers from 190 nm to 4 µm
- Independent Ti:Sa and OPO wavelength tuning
- Intracavity OPO SHG for efficient conversion into the VIS-range
- 200 fs pulse width, convertible to picosecond
- Shot-noise-limited performance
- Perfectly synchronized output pulses
- Integrated spectrometer for precise wavelength tuning and stabilization
- Fully computer-controlled with automated wavelength tuning
Acquisition Software and TCP/IP Standard Software Interface
Specifications & Typical Performance
Example configuration with Coherent Chameleon Ultra II Ti:Sa laser

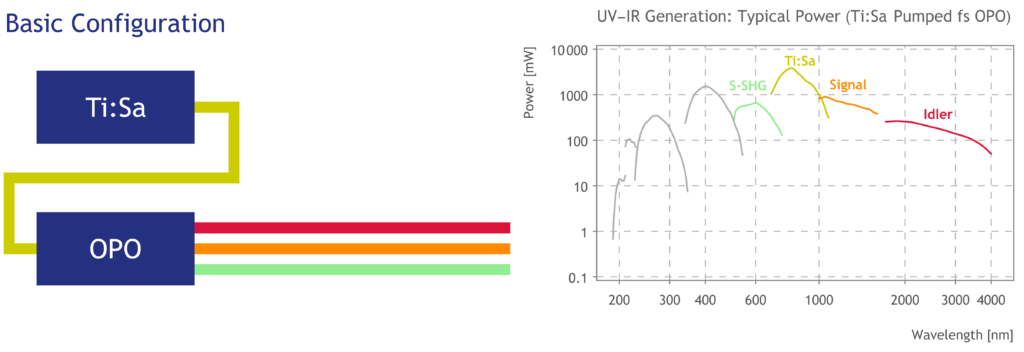

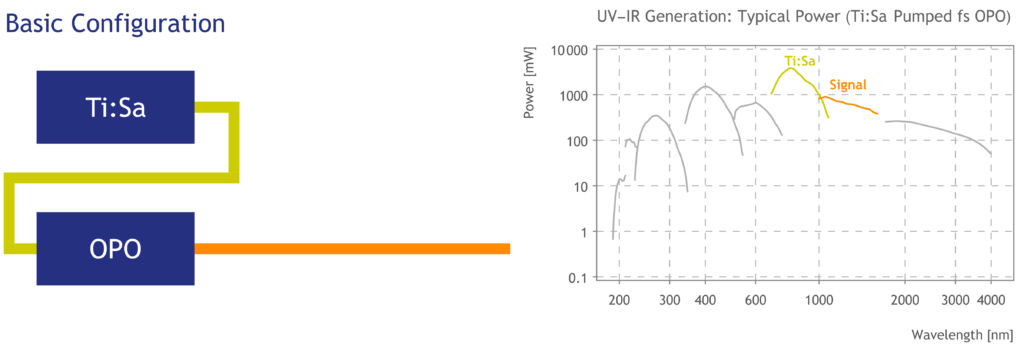

Basic Configuration

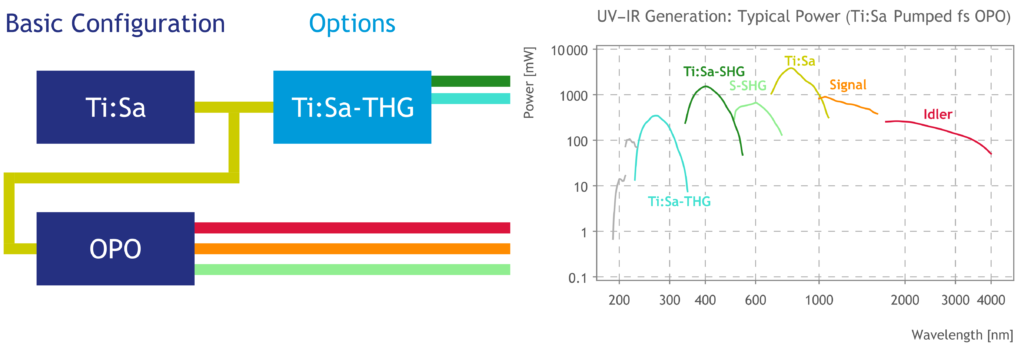

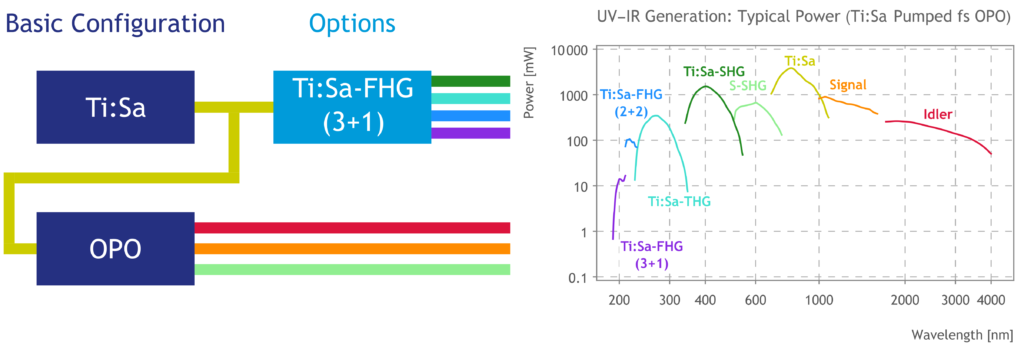

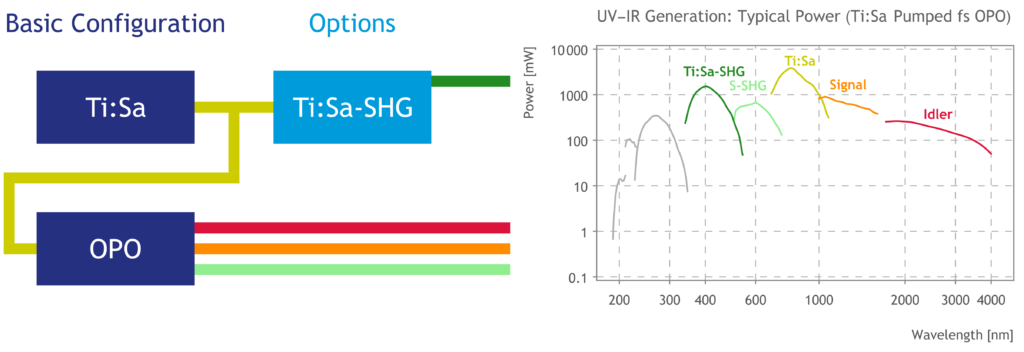

Optional
| Ti:Sa FHG (3+1) | Ti:Sa FHG (2+2) | Ti:Sa THG | Ti:Sa SHG | OPO-X fs Signal SHG | Chameleon UII *** | OPO-X fs Signal | OPO-X fs Idler | |
|---|---|---|---|---|---|---|---|---|
* At the specified wavelength for power measurement, expressed as normalized root mean square deviation (NRMSD), with power lock enabled, under stable environmental conditions. ** -162 dBc - limit of the measurement setup used *** Chameleon specification please refer to the Coherent data sheet |
||||||||
| Wavelength range | 190 nm … 210 nm | 210 nm … 230 nm | 227 nm … 360 nm | 340 nm … 540 nm | 505 nm … 740 nm | 680 nm … 1080 nm | 1000 nm … 1600 nm | 1750 nm … 4000 nm |
| Power | 10 mW at 200 nm | 80 mW at 220 nm | 350 mW at 266 nm | 1.4 W at 400 nm | 500 mW at 600 nm | 3.5 W at 800 nm | 650 mW at 1100 nm | 150 mW at 2000 nm |
| Pulse width (FWHM) | typ. 200 fs | 140 fs | typ. 200 fs | |||||
| Time-Bandwidth product | - | 0.6 | 0.4 | 0.6 | ||||
| Repetition rate | 80 MHz | |||||||
| Output polarization | Horizontal | Horizontal | Horizontal | Vertical | Vertical | Horizontal | Horizontal | Horizontal |
| Power stability (RMS)* | 0.50% | |||||||
| Spectral stability (RMS)* | 0.01% | |||||||
| Shot-Noise limited** | -162 dBC/Hz, >1 MHz | |||||||
