The Levante Emerald ps is a synchronously pumped, tunable OPO with high conversion efficiency generating 660 nm to 2300 nm wavelength range. It is driven by green (SHG of 1 µm) mode-locked picosecond lasers. Depending on the pump laser it provides 2 ps to 12 ps pulses with a 1.5 cm-1 to 10 cm-1 bandwidth at Watt-level Signal/Idler output power. With optional harmonic generators for Signal and Idler extending down to the 4th harmonic, systems can be configured from 190 nm to 2300 nm. It is ideal for quantum dot research, metrology, coherent Raman microscopy and fluorescence lifetime imaging.
Systems can be further customized using pulse pickers (pulseSelect) to reduce the repetition rate, spectral slicers (pulseSlicer) for bandwidth reduction and optical delay lines (scanDelay). Multiple OPOs can also be pumped simultaneously by a single pump laser to generate independent, tunable, and temporally synchronized pulses.
Customization is our specialty. If your requirements are not listed in the specification table, please feel free to contact us.
Compatible Pump Lasers
The Levante Emerald ps is compatible with and field tested for many industrial-grade, mode-locked picosecond lasers, for example:
- EdgeWave FX-series with 2 ps
- EdgeWave PX-series with 12 ps and 20 ps
- Others on request
Applications
- Quantum dot research
- Metrology
- Coherent Raman microscopy (CARS, SRS)
- Fluorescence life time imaging (FLIM)
- Time-correlated single-photon counting (TCSPC)
At a Glance
- Perfectly synchronized output pulses
- Available with different pulse widths and bandwidths
- Integrated spectrometer for precise wavelength tuning and stabilization
- Fully computer-controlled with automated wavelength tuning
Acquisition Software and TCP/IP Standard Software Interface
ARPES
The combination of the Levante Emerald ps with our HarmoniXX FHG is an ideal light source for Laser-ARPES.

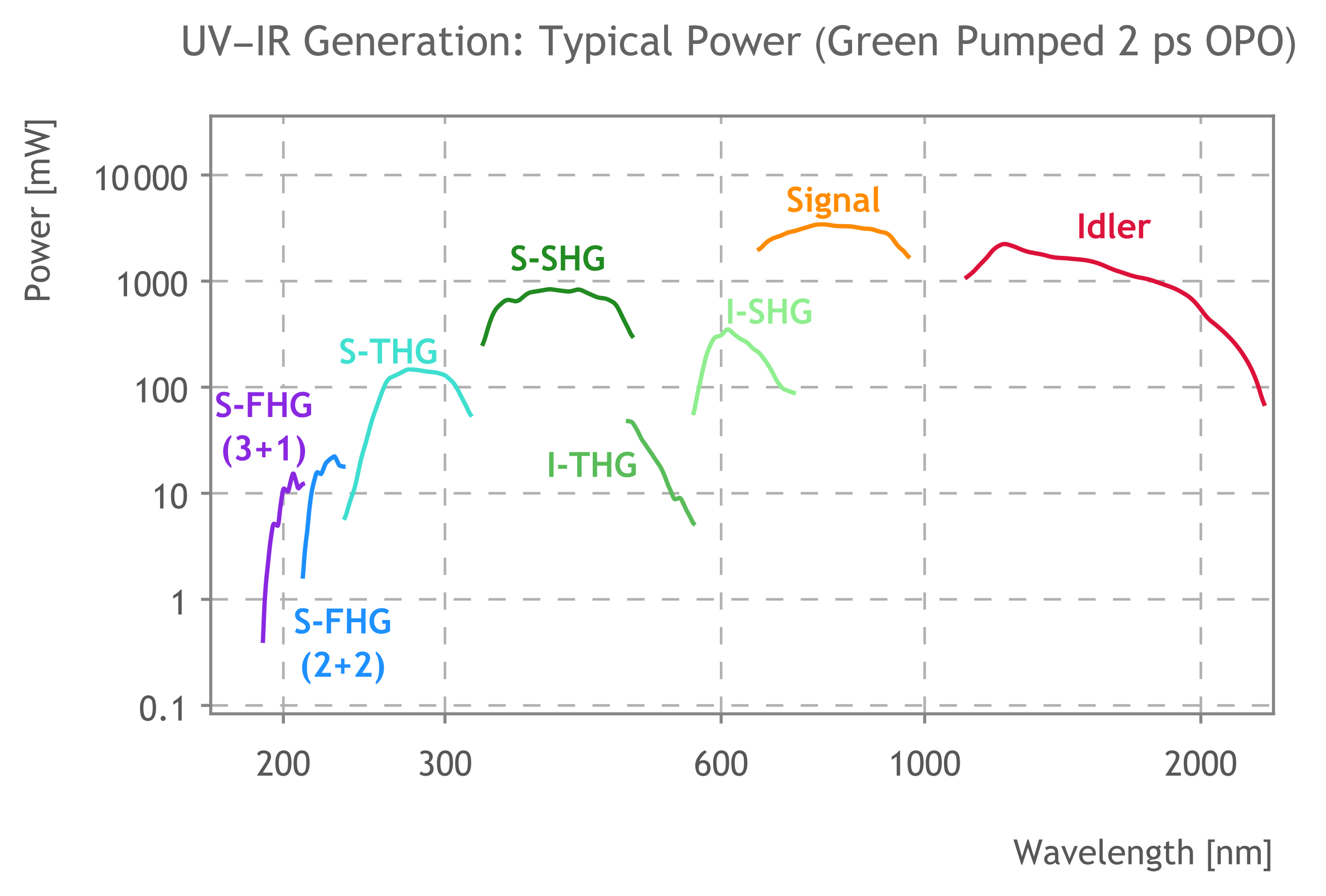

Specifications & Typical Performance
Example configuration with EdgeWave FX-series 10 W, 515 nm, 2 ps
Basic Configuration
Optional
| Signal FHG (3+1) | Signal FHG (2+2) | Signal THG | Signal SHG | Idler THG | Idler SHG | Levante Emerald 2 ps Signal | Levante Emerald 2 ps Idler | |
|---|---|---|---|---|---|---|---|---|
* At the specified wavelength for power measurement, expressed as normalized root mean square deviation (NRMSD), with power lock enabled, under stable environmental conditions. |
||||||||
| Wavelength range | 190 nm … 210 nm | 210 nm … 230 nm | 230 nm ... 320nm | 330 nm … 480 nm | 475 nm … 560 nm | 560 nm ... 720 nm | 660 nm … 960 nm | 1120 nm … 2340 nm |
| Power | 5 mW at 200 nm | 10 mW at 225 nm | 100 mW at 270nm | 120 mW at 400 nm | 25 mW at 480 nm | 200 mW at 600 nm | 2.5 W at 800 nm | 1.7 W at 1250 nm |
| Bandwidth (FWHM) | ~10 cm-1 | |||||||
| Pulse width (FWHM) | ~2 ps | |||||||
| Time-Bandwidth product | 0.6 | |||||||
| Repetition rate | 80 MHz ± 1 MHz (other on request) | |||||||
| Output polarization | Horizontal | Horizontal | Horizontal | Vertical | Horizontal | Vertical | Horizontal | Horizontal |
| Power stability (RMS)* | 0.5% | |||||||
| Spectral stability (RMS)* | 0.01% | |||||||

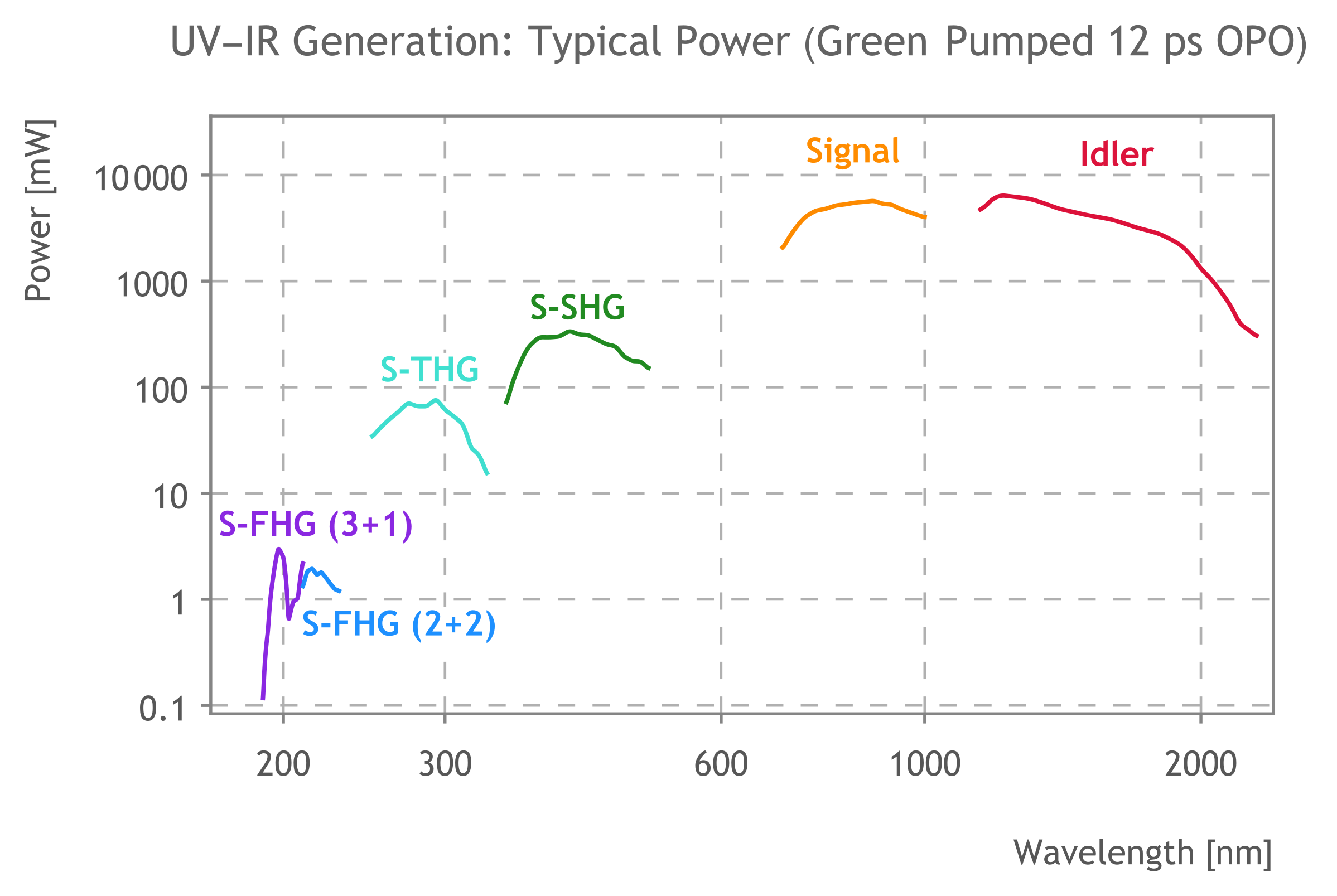

Specifications & Typical Performance
Example configuration with EdgeWave PX-series 10 W, 532 nm, 12 ps
Basic Configuration
Optional
| Signal FHG (3+1) | Signal FHG (2+2) | Signal THG | Signal SHG | Levante Emerald 7 ps Signal | Levante Emerald 7 ps Idler | |
|---|---|---|---|---|---|---|
* At the specified wavelength for power measurement, expressed as normalized root mean square deviation (NRMSD), with power lock enabled, under stable environmental conditions. |
||||||
| Wavelength range | 190 nm … 210 nm | 210 nm … 230 nm | 233 nm … 330 nm | 350 nm … 495 nm | 700 nm … 990 nm | 1150 nm … 2200 nm |
| Power | 1 mW at 200 nm | 1 mW at 220 nm | 40 mW at 267 nm | 120 mW at 400 nm | 2.5 W at 800 nm | 1.7 W at 1250 nm |
| Bandwidth (FWHM) | ~3 cm-1 | |||||
| Pulse width (FWHM) | ~7 ps | |||||
| Time-Bandwidth product | 0.6 | |||||
| Repetition rate | 80 MHz ± 1 MHz (other on request) | |||||
| Output polarization | Horizontal | Horizontal | Horizontal | Vertical | Horizontal | Horizontal |
| Spectral stability (RMS)* | 0.01% | |||||

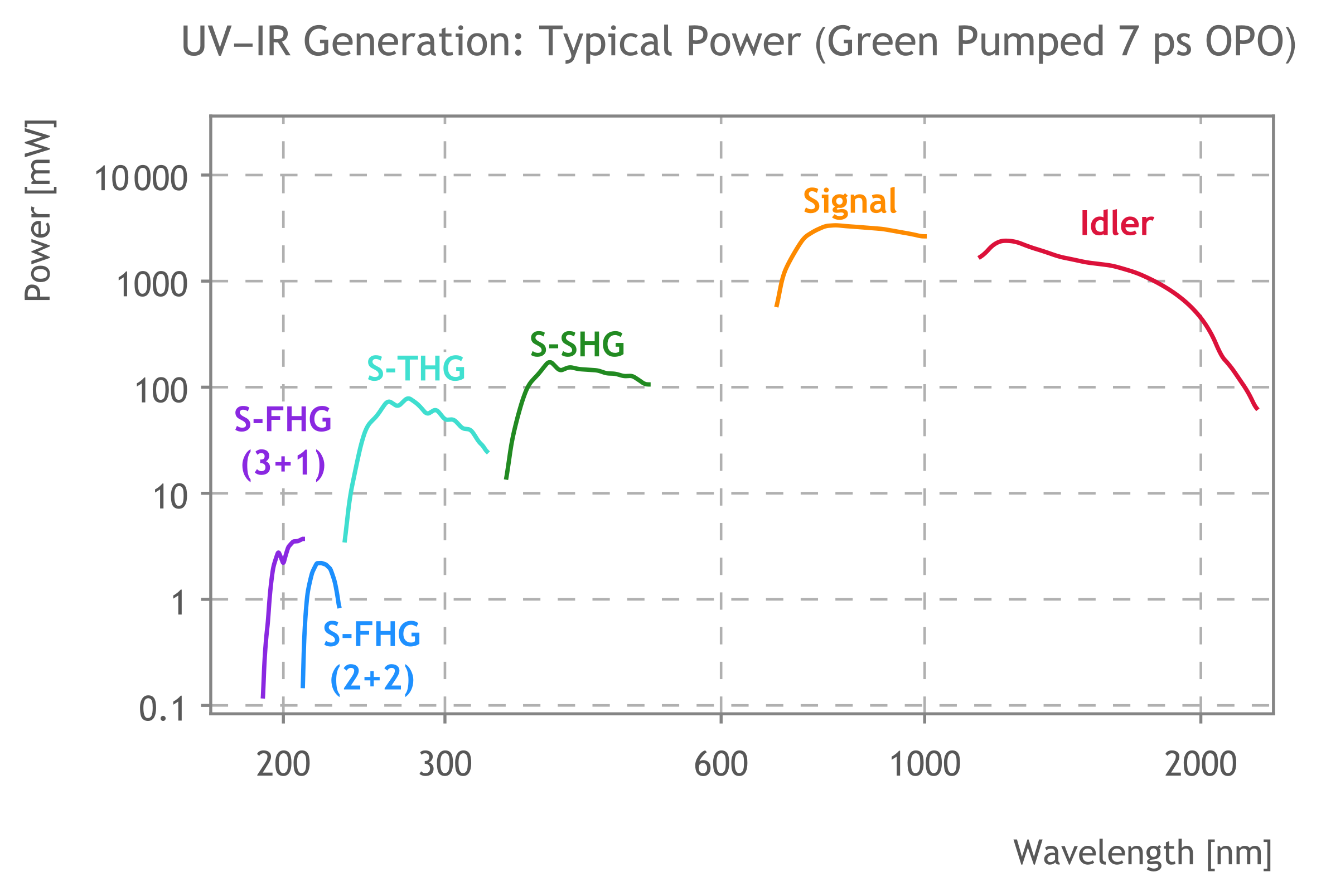

Specifications & Typical Performance
Example configuration with EdgeWave PX-series 20 W, 532 nm, 20 ps
Basic Configuration
Optional
| Signal FHG (3+1) | Signal FHG (2+2) | Signal THG | Signal SHG | Levante Emerald 12 ps Signal | Levante Emerald 12 ps Idler | |
|---|---|---|---|---|---|---|
* At the specified wavelength for power measurement, expressed as normalized root mean square deviation (NRMSD), with power lock enabled, under stable environmental conditions. |
||||||
| Wavelength range | 190 nm … 210 nm | 210 nm … 230 nm | 230 nm … 330 nm | 335 nm … 500 nm | 700 nm … 990 nm | 1150 nm … 2200 nm |
| Power | 1.5 mW at 200 nm | 1.2 mW at 220 nm | 45 mW at 267 nm | 250 mW at 400 nm | 4.5 W at 800 nm | 3.0 W at 1250 nm |
| Bandwidth (FWHM) | ~1.5 cm-1 | |||||
| Pulse width (FWHM) | ~12 ps | |||||
| Time-Bandwidth product | 0.6 | |||||
| Repetition rate | 80 MHz ± 1 MHz (other on request) | |||||
| Output polarization | Horizontal | Horizontal | Horizontal | Vertical | Horizontal | Horizontal |
| Spectral stability (RMS)* | 0.01% | |||||
