Overview
The Levante Emerald fs is a synchronously pumped, tunable OPO with high conversion efficiency, generating output wavelengths from 670 nm to 2200 nm. It is driven by green (SHG of 1 µm) mode-locked femtosecond lasers. It offers a user-adjustable bandwidth between 80 cm-1 and 160 cm-1, along shot-noise-limited performance. Applications include broadband and spectral focusing CARS / SRS microscopy, multiphoton microscopy to nonlinear spectroscopy.
Systems can be further customized using pulse pickers (pulseSelect) to reduce the repetition rate, spectral slicers (pulseSlicer) for bandwidth reduction, optical delay lines (scanDelay) and dispersion compensators (femtoControl). Multiple OPOs can also be pumped simultaneously by a single pump laser to generate independent, tunable, and temporally synchronized pulses.
Customization is our specialty. If your requirements are not listed in the specification table, please feel free to contact us.
Compatible Pump Lasers
The Levante Emerald fs is compatible with and field tested for mode-locked green femtosecond lasers, for example:
- Light Conversion FLINT with SHG-module
- Others on request
Applications
- Broadband and spectral focusing CARS / SRS microscopy
- Multiphoton microscopy
- Nonlinear spectroscopy
At a Glance
- Generates tunable NIR and IR pulses from a green femtosecond laser

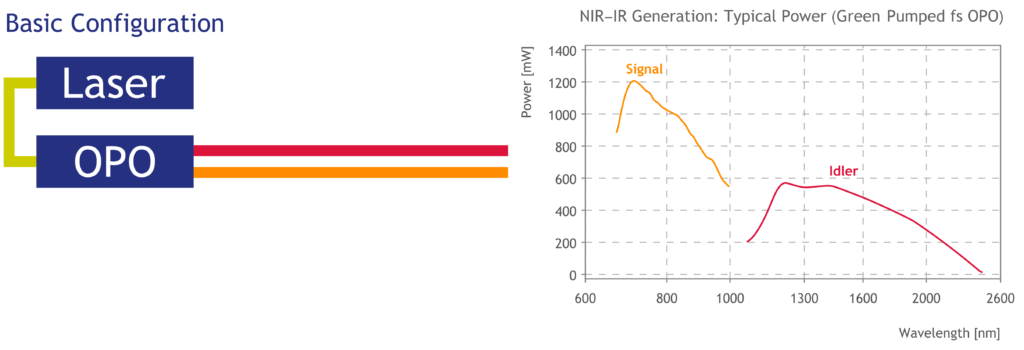

- Tuning range: 670 nm – 2200 nm with several 100 mW output power
- Adjustable bandwidth between 80 cm-1 and 160 cm-1
- Perfectly synchronized output pulses
- Integrated spectrometer for precise wavelength tuning and stabilization
- Fully computer-controlled with automated wavelength tuning
Acquisition Software and TCP/IP Standard Software Interface
Specifications & Typical Performance
Example configuration with Light Conversion FLINT 2.4 W, 515 nm
| Levante Emerald fs Signal | Levante Emerald fs Idler | |
|---|---|---|
* At the specified wavelength for power measurement, expressed as normalized root mean square deviation (NRMSD), with power lock enabled, under stable environmental conditions. ** -162 dBc - limit of the measurement setup used |
||
| Wavelength range | 670 nm … 990 nm | 1075 nm … 2000 nm |
| Power | 500 mW at 800 nm | 250 mW at 1250 nm |
| Bandwidth (FWHM) | 80 ... 160 cm-1 | |
| Pulse width (FWHM) | ~300 fs, compressible down to <100 fs | |
| Repetition rate | 80 MHz | |
| Output polarization | Horizontal | |
| Spectral stability (RMS)* | 0.01% | |
| Shot-Noise limited** | -162 dBc/Hz, >0.7 MHz | |
