The Ultimate Measurement Tool for Ultrafast Laser Systems and Hollow-Fiber Compressors

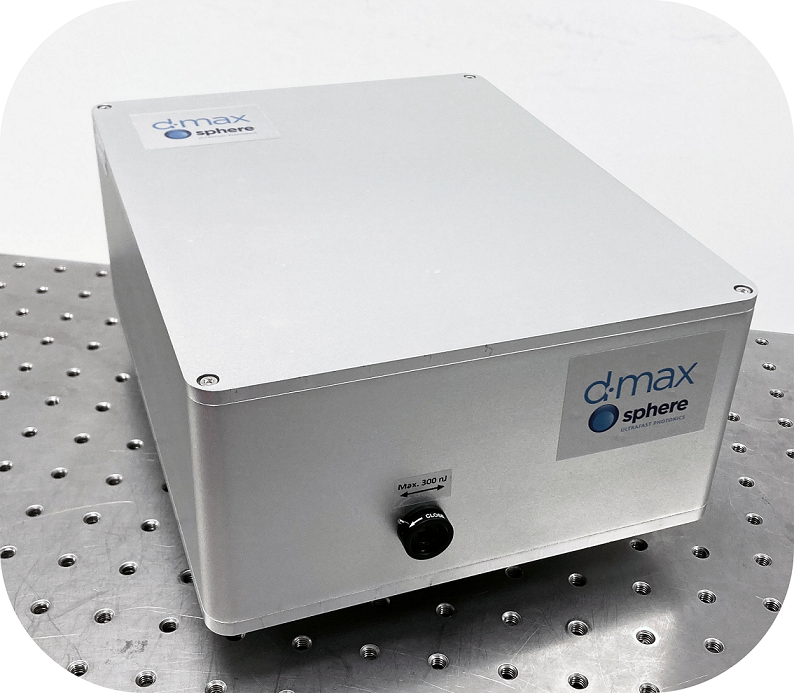

The d-max is the preferred system for quickly and accurately measuring even the most challenging ultrafast pulses, including ultra-broadband spectra and few-cycle durations. Its compact, standalone design supports a variety of ultrashort pulse sources, such as broadband laser oscillators, amplifiers, OPAs, and hollow-core fiber and multipass cell post-compressors.
The d-max’s compact design packs a dispersion-calibrated system that measures your pulses exactly as they are, without ambiguity. Beam coupling is easy and a full measurement is completed in under 10 seconds. The intuitive d-max trace provides instant visual feedback via the unique Virtual Logbook™ interface, and its proprietary algorithm ensures fast, accurate pulse reconstruction.
Ti:Sa Oscillator (800 nm)

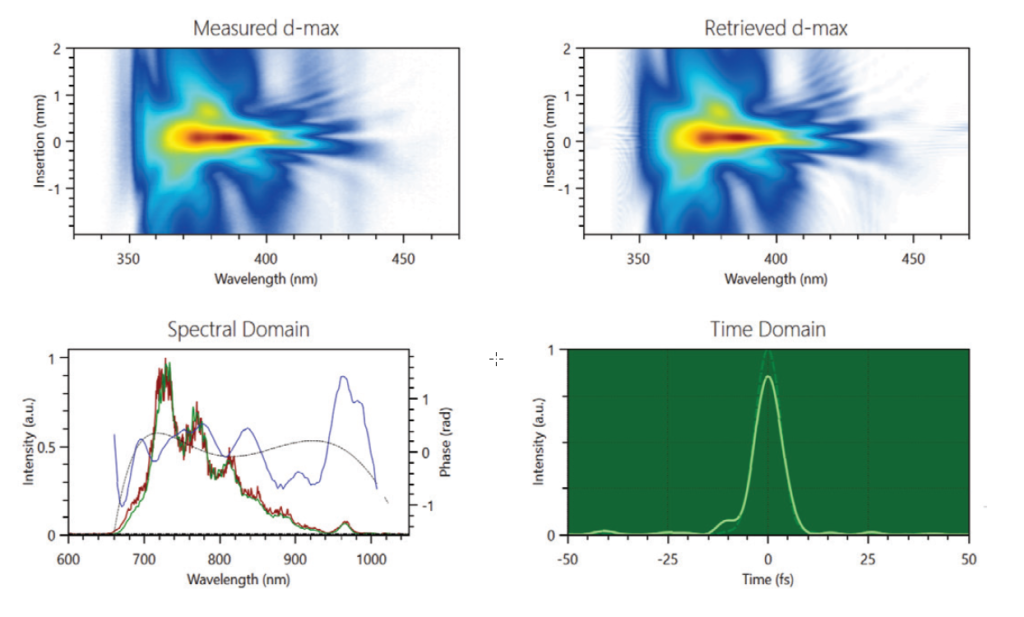

(top) Measured and retrieved d-max traces, (bottom left) Measured spectrum (red), retrieved spectrum (green), retrieved spectral phase (blue), 4th order polynomial fit of the spectral phase (black), (bottom right) Retrieved temporal intensity profile (light green), FTL (Dashed green) (8 fs @FWHM).
Two Stage MPC output (1 µm)

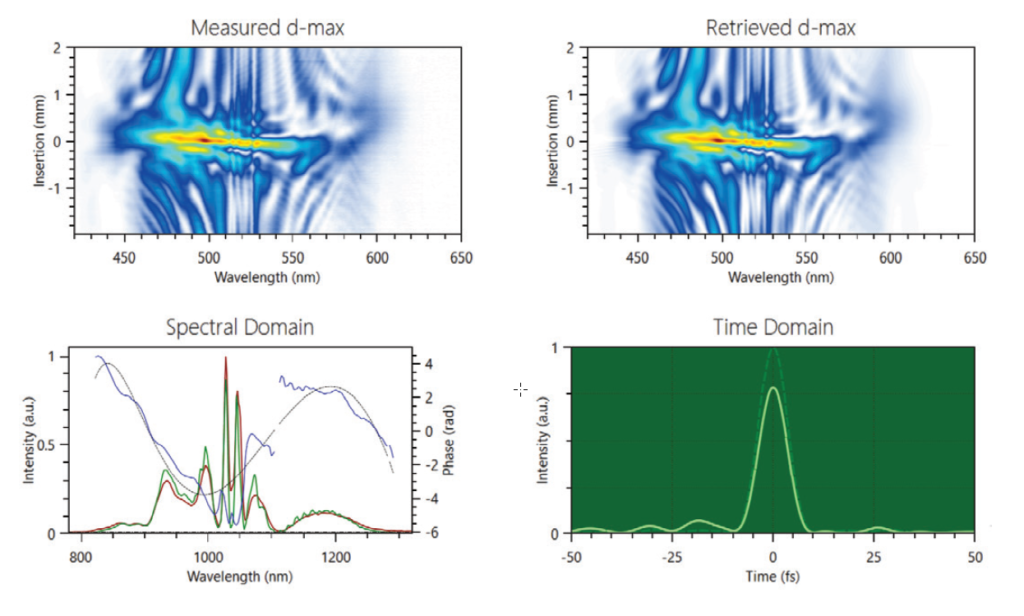

(top) Measured and retrieved d-max traces, (bottom left) Measured spectrum (red), retrieved spectrum (green), retrieved spectral phase (blue), 4th order polynomial fit of the spectral phase (black), (bottom right) Retrieved temporal intensity profile (light green), FTL (Dashed green) (8 fs @FWHM).
Specifications
| d-max | B (a) | R (b) | SWIR (c) | XR |
|---|---|---|---|---|
| Wavelength range | 500 … 1000 nm | 600 … 1100 nm | 700 … 1400 nm | 600 … 1100 nm / 700 … 1400 nm |
| Pulse duration (FTL) (d) | 4 fs … 40 fs | 7 fs … 50 fs | 7 fs … 50 fs | 40 fs … 200 fs |
| Chirp range | ± 3520 fs2 | ± 3520 fs2 | ± 7040 fs2 | > 300,000 fs2 |
| Repetition rate | 1 kHz and above | |||
| Input polarization | Linear | |||
| Max input aperture | 5 mm | |||
| Required input energy | >100 pJ @ 80 MHz, 1 μJ @ 1 kHz | |||
| Dimensions (W x L x H) | 250 mm x 200 mm x 100 mm | |||
(a) Optimized for post-compressors
(b) Optimized for Ti:Sapphire oscillators and OPCPAs
(c) Optimized for OPCPA
(d) FTL = Fourier-Transform limit. The temporal duration can be much longer if the pulse is chirped (within the chirp range of the model).
(e) Lower repetition rates possible with external synch option
* Vacuum compatible systems available on request
