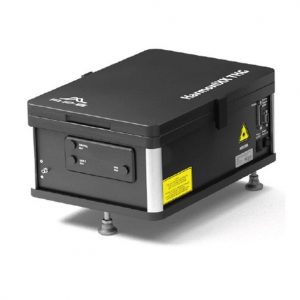

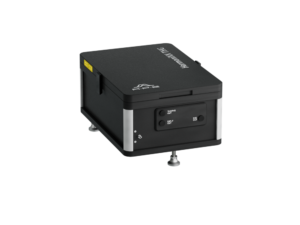

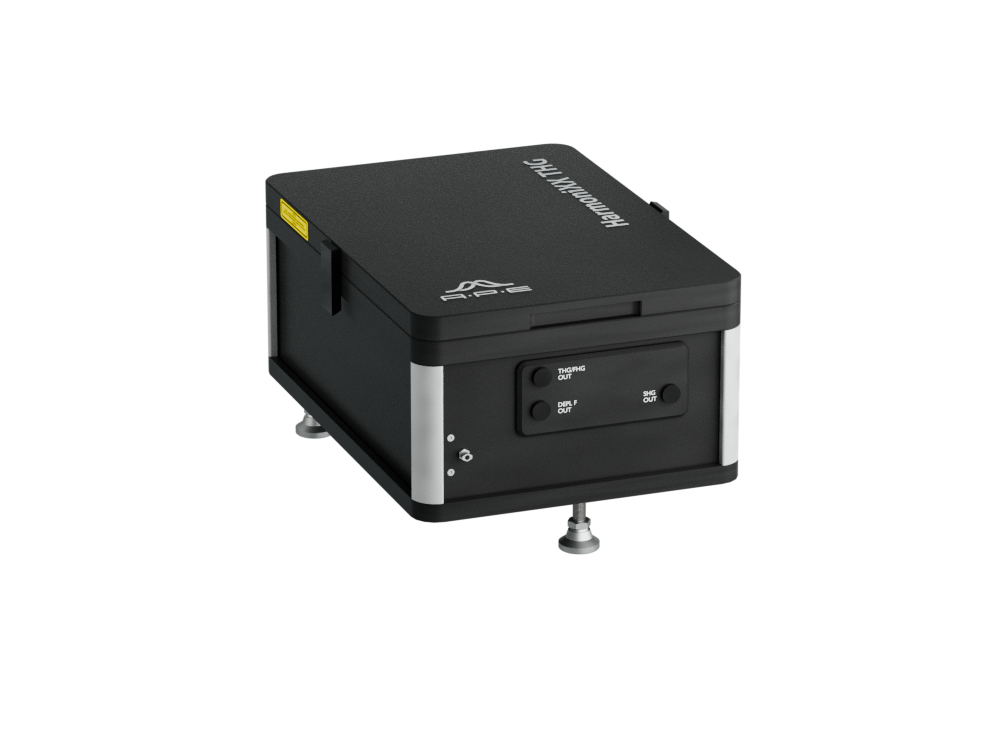

As part of our HarmoniXX product line, the HarmoniXX THG is a frequency converter for tripling the frequency of ultra short-pulse lasers. Third Harmonic Generation is a generation of photons with a tripled frequency. Three photons are employed, creating a single photon at three times the frequency.

User-friendly Design

Unlike conventional triplers, the HarmoniXX THG requires less adjustment efforts because no separation and recombination of the interacting beams is needed. This user-friendly feature has one common optical beam path for all interacting beams. It is implemented by means of a proprietary delay compensator and provides consistent spatial overlap for optimum efficiency.

At a Glance

  • High conversion efficiency
  • Easy alignment and automatic wavelength tuning
  • Suitable for both tunable and fixed frequency fs and ps lasers
  • Excellent pointing stability and beam profile
  • Remote operation via software GUI

Specifications

At a Glance

HarmoniXX THG Specification
Quick Exchangable Optics SetWavelength range exchange sets;
Pulse duration exchange set fs - ps
Input Wavelength Range680 ... > 2000 nm
(Spanning 1 Octave with one Optics Set; e.g. 650 - 1300 nm)
Output THGDown to < 230 nm
(e.g. 227 ... 360 nm for TiSa)
Output SHGAvailable
Output FundamentalAvailable
Pulse Durationfs or ps
Conversion EfficiencyTHG 10 % (fs), 3 % (ps)*
SHG 20 % (fs), 10 % (ps)*
*depends on laser model / pulse duration
Walkoff CompensationBuilt-in mechanical walkoff compensator
Polarization (Linear)Input: horizontal, THG Out: horizontal, SHG Out: vertical, Fundamental Out: vertical
AutomationFully Motorized, GUI /Software included, Auto Power Adjustment as Option
Delay CompensationUnlike conventional triplers, the HarmoniXX THG requires less adjustment efforts because no separation and recombination of the interacting beams is needed. This user-friendly feature has one common optical beam path for all interacting beams. It is implemented by means of a proprietary delay compensator and provides consistent spatial overlap for optimum efficiency.
Options
Auto Power AdjustmentAutomated output power optimization at the press of a button
  • High conversion efficiency
  • Automatic wavelength tuning
  • For both tunable and fixed frequency fs and ps lasers
  • Excellent pointing stability and beam profile
  • Software included
  • Remote operation via software GUI
