OPO – Optical Parametric Oscillator

OPO-X GHz fs

Tunable fs Pulses with GHz Repetition Rate


Tunable Femtosecond Pulses with GHz Repetition Rate for Ti:Sa Laser


GHz for VIS, NIR, IR

GHz OPO-X by APE is a GHz Optical Parametric Oscillator (OPO) providing tunable femtosecond pulses in the near-infrared (NIR), visible (VIS) as well as infrared (IR) wavelength region.

Ideal for GHz Ti:Sa Laser

It is an ideal choice to add new wavelength ranges to GHz repetition rate Ti:Sapphire lasers, such as taccor tune made by Laser Quantum.

At a Glance

  • GHz repetition rate OPO for Ti:Sa lasers
  • Tunable from < 530 … 740 nm (VIS), 1010 … 1500 nm (NIR) and 1750 … 3800 nm (IR)
  • Completely automated and fully computer controlled
  • TCP/IP remote control with standardized command set for easy programming
  • Integrated high resolution spectrometer and power performance monitoring

Acquisition Software and TCP/IP Standard Software Interface

All models come with an easy to use data acquisition software, allowing for real-time data display. Furthermore, the TCP/IP-based standard software interface by APE makes it straight forward to set up remote control. This allows you, for example, to design your own automated measurement routines. Simply use our protocol templates for rapid configuration with familiar programming languages, including C++, C#, LabVIEW, Python, Matlab, and Ruby.

OPO Revolution

Short documentary that travels the world to examine how APE optical parametric oscillator (OPO) systems are enabling next generation work in solar cells, cancer research, biomedicine, surgical procedures, molecular science, and more.



Specifications

OPO-X GHz fs
   Tuning Range Signal IR1010 … 1500 nm
   Tuning Range Signal VIS530 … 740 nm (optional)
   Tuning Range Idler1750 … 3800 nm (optional)

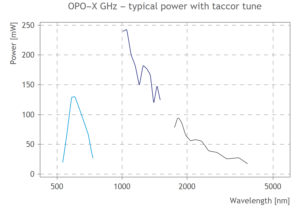

   Output Power Signal IR> 170 mW at 1100 nm*
   Output Power Signal VIS> 100 mW at 600 nm*
   Pulse WidthTyp. 200 fs
   Time Bandwidth ProductTyp. 0.6
   Repetition RateEqual to the repetition rate of the pump laser, ~ 1 GHz
   PolarizationSignal, Idler: Horizontal, linear; VIS: Vertical, linear
   Beam Quality M²Typ. < 1.2 (Signal IR, Signal VIS)
   DivergenceTyp. 0.8 mrad (Signal IR)
Options
   Signal VIS, intracavity SHG: 530 … 740 nm
   Idler Ouput: 1750 … 3800 nm
   Pulse compressor
*Pump parameter: 800 nm, > 1.8 W, ≤ 15 nm bandwidth e.g. pumped with taccor tune (Novanta)

Datasheets & Brochures

APE-GHz-OPO-X-rev.-3.2.2 (pdf / english)
