nanoLevante3

nanoLevante3

All integrated diode pumped nanosecond OPO


Introduction

The nanoLevante3 is a compact and rugged source of nanosecond laser pulses in the Mid and Near Infrared range. It offers tunable pulses at around 3 µm and 1.65 µm (on request between 4 µm and 1.4 µm) in a rarely covered pulse parameter regime – up to hundreds of µJ pulse energy and kHz repetition rate.

Due to the specific design and the active Q-switching the repetition rate can be changed without any pulse parameter variation. It ranges from single shot up to 1 kHz by either internal or external trigger and allows for pulse on demand operation.

Wavelength, repetition rate and pulse energy are set via the easy to use Control Software or remotely via the software interface. The output power is monitored and displayed in the Control Software.

With its integrated pump laser the nanoLevante3 is a compact and easy to use pulsed laser source with outstanding reliability for many applications.


At a Glance

  • High peak power nanosecond pulses tunable from 2.8 to 3.1 µm (other wavelengths on request)
  • High beam quality
  • Air cooled, compact system
  • Computer controlled tuning
  • Pulse on demand, ports for external trigger and remote control
  • Power monitoring and integrated attenuator

Applications

  • MIR laser assisted bioprinting of artificial tissue
  • Wavelength selective micro material processing
  • IR MALDI mass spectrometry

Specifications

Applications

nanoLevante3
Wavelength range Idler2.8 µm … 3.1 µm - others on request
Wavelength range Signal, optional1.6 µm … 1.7 µm - others on request
Repetition rateSingle Shot … 1 kHz
Pulse width, typical10 ns

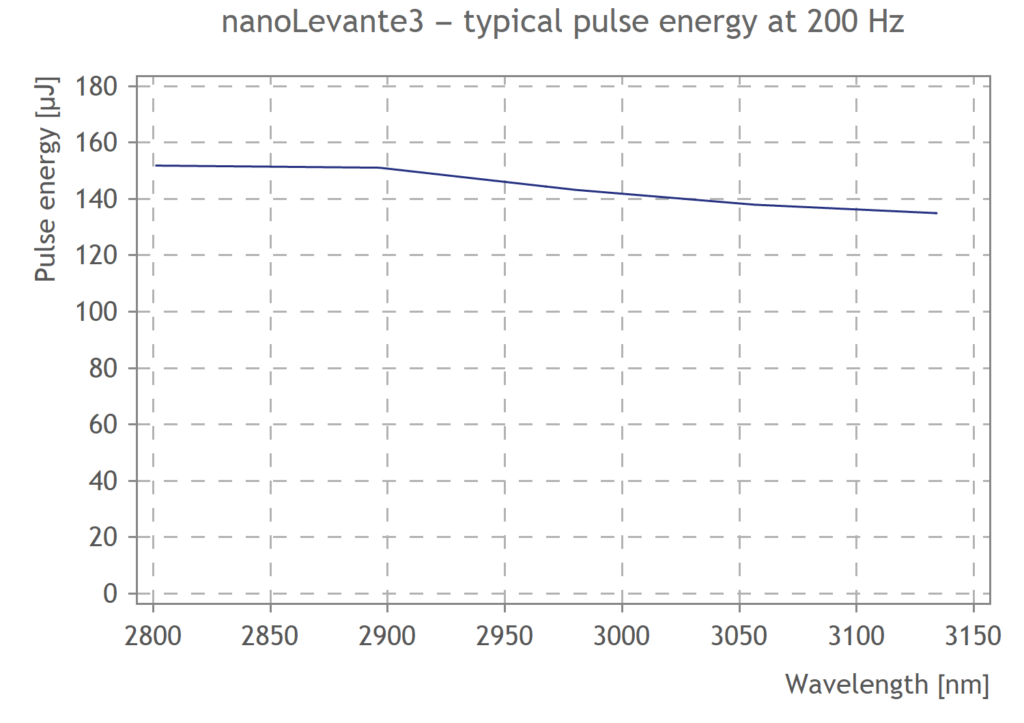

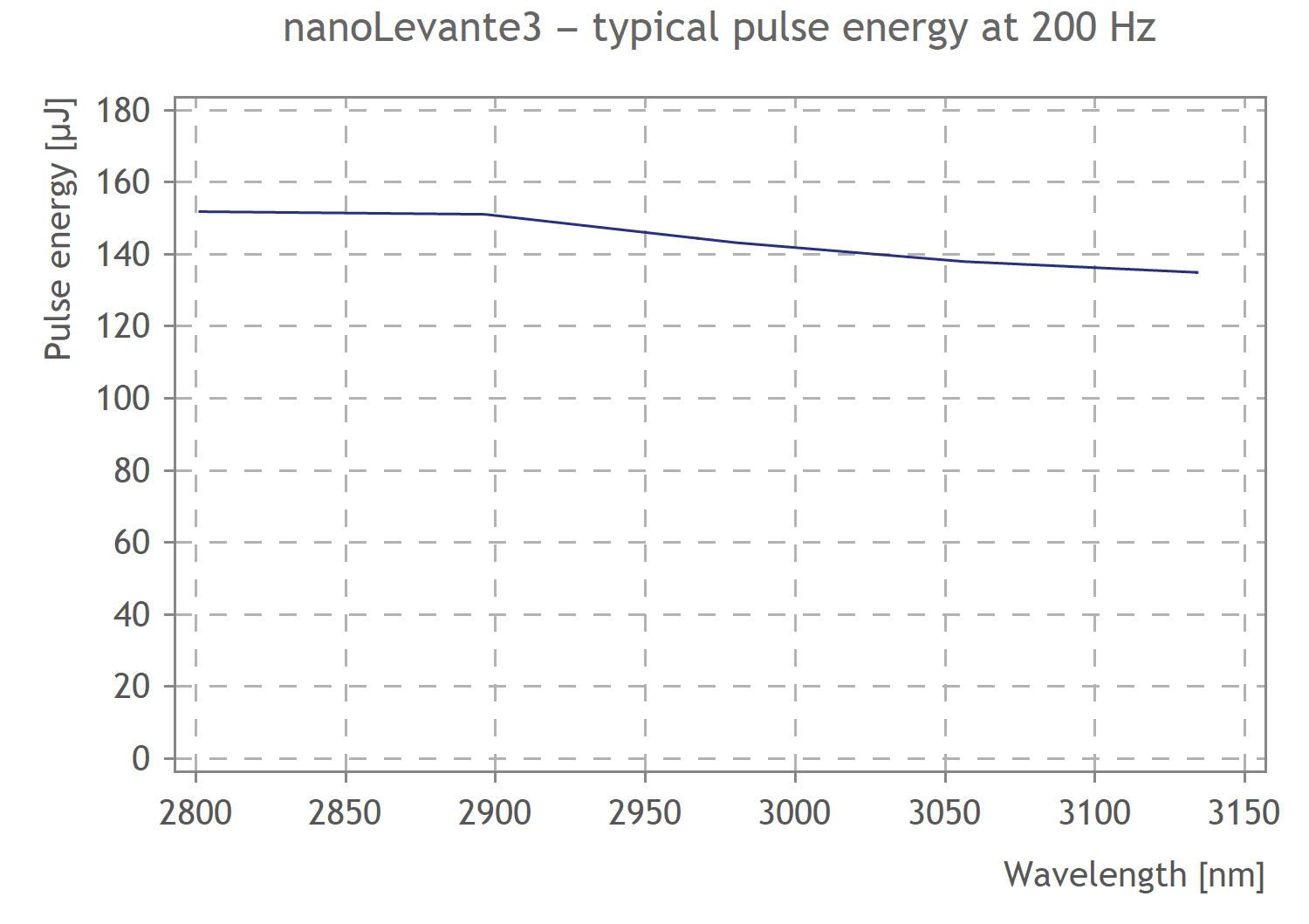

Pulse energy, typical110 µJ at 1 kHz
Pulse energy stability, typical1.3% RMS
Beam quality M2<2 Gaussian fit
Beam diameter at exit, typical3 mm
Beam divergence, typical2.5 mrad full angle
Dimension laser head130 mm x 222 mm x 350 mm
Dimension power supply19" Rack, 3 HU (450 mm x 460 mm x 130 mm)
Power consumption110 V … 240 V, 50 Hz … 60 Hz, 800 W
Operating temperature15°C … 35°C
  • MIR laser assisted bioprinting of artificial tissue
  • Wavelength selective micro material processing
  • IR MALDI mass spectrometry
